DPC-56-420

DPC-56-420

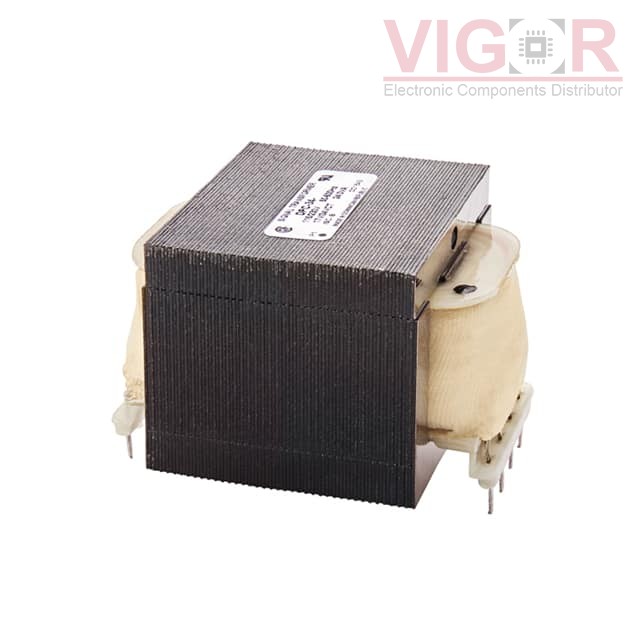

Image is for reference,
please contact us to get the real picture

Part No :

DPC-56-420

Manufacturer
Signal Transformer
Description
PWR XFMR LAMINATED 24VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
DPC-56-420 PDF
Availability
0 pieces
Unit Price
$10.28040

Current price of DPC-56-420 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPC-56-420 Specifications
Type Description
Series:DPC
Package:Bulk
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):Parallel 28V, Series 56V
Current - Output (Max):Parallel 840mA, Series 420mA
Primary Winding(s):Dual
Secondary Winding(s):Dual
Center Tap:No
Power - Max:24VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:41.30mm L x 57.20mm W
Height - Seated (Max):34.93mm
Voltage - Isolation:1500Vrms
Weight:0.75 lb (340.19 g)
