TSM75-H25HM50ST-11.2896M

TSM75-H25HM50ST-11.2896M

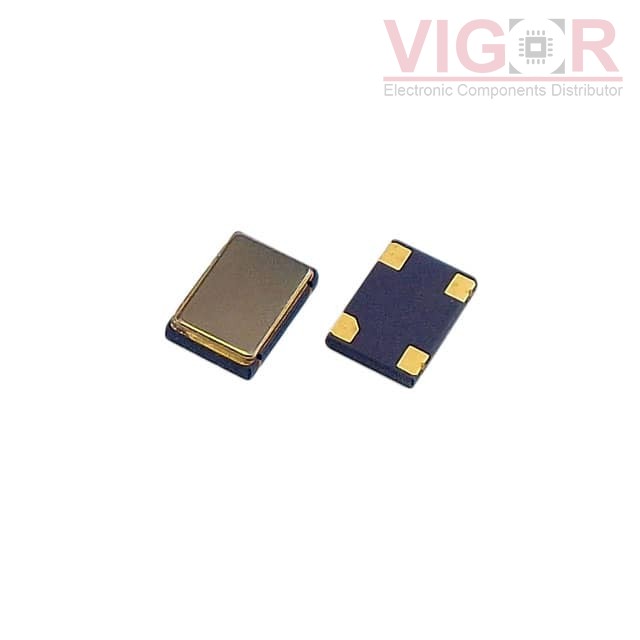

Image is for reference,
please contact us to get the real picture

Part No :

TSM75-H25HM50ST-11.2896M

Manufacturer
Transko
Description
11.2896MHZ XTAL OSC CERAMIC SMD
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
TSM75-H25HM50ST-11.2896M PDF
Availability
100 pieces
Unit Price
$2.00000

Current price of TSM75-H25HM50ST-11.2896M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSM75-H25HM50ST-11.2896M Specifications
Type Description
Series:TSM75
Package:Strip
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:11.2896 MHz
Function:Enable/Disable
Output:HCMOS
Voltage - Supply:5V
Frequency Stability:±25ppm
Absolute Pull Range (APR):-
Operating Temperature:0°C ~ 70°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):20mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):0.059" (1.50mm)
