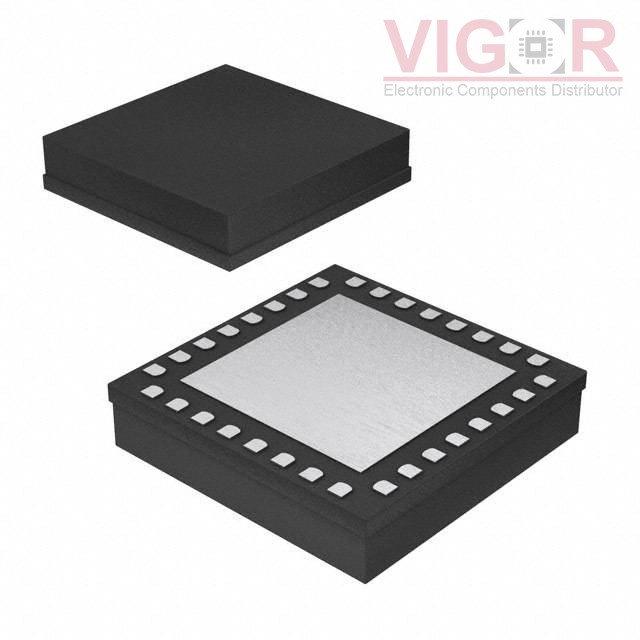

HMC510LP5E

Image is for reference,
please contact us to get the real picture

Part No :: HMC510LP5E

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: VCO 4.5GHZ/9GHZ 2-13V 5X5MM

Catalog: VCOs (Voltage Controlled Oscillators)

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: HMC510LP5E PDF

Availability: 278 pieces

Unit Price: ~~$38.26000~~

Current price of HMC510LP5E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMC510LP5E Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Active
Frequency Range:	4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz
Frequency - Center:	4.5GHz, 9GHz
Voltage - Supply:	5V
Tuning Voltage (VDC):	2 V ~ 13.0 V
2nd Harmonic, Typ (dBc):	15
Icc Max:	360mA
Pushing (MHz/V):	20
Power (dBm):	-6±2, 11±3, 12.5±2.5
Phase Noise Typ (dBc/Hz):	-116
Operating Temperature:	-40°C ~ 85°C
Package / Case:	32-VFQFN Exposed Pad, CSP
Size / Dimension:	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height:	0.039" (1.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

CVCO55CC-2010-2485

VCO 2247.5MHZ 0.5-18V 12.7X12.7

HOT

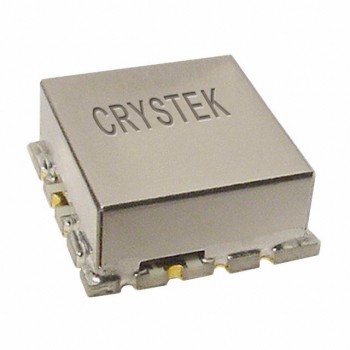

CVCO55CC-2818-2835
