Type | Description |
---|---|
Series: | - |
Package: | Tray |
Part Status: | Active |
Type: | - |
Coil Type: | Bipolar |
Voltage - Rated: | 24VDC |
Current Rating (Amps): | 600 mA |
Steps per Revolution: | 400 |
Step Angle: | 0.9° |
Accuracy: | - |
Torque - Holding (oz-in / mNm): | 6 / 42.37 |
Size / Dimension: | Round - 1.429" Dia (36.30mm) |
NEMA Frame Size: | 14 |
Diameter - Shaft: | 0.197" (5.00mm) |
Length - Shaft and Bearing: | 0.591" (15.00mm) |
Mounting Hole Spacing: | - |
Termination Style: | Wire Leads |
Operating Temperature: | -20°C ~ 50°C |
Coil Resistance: | 4 Ohms |
Features: | Round Shaft |

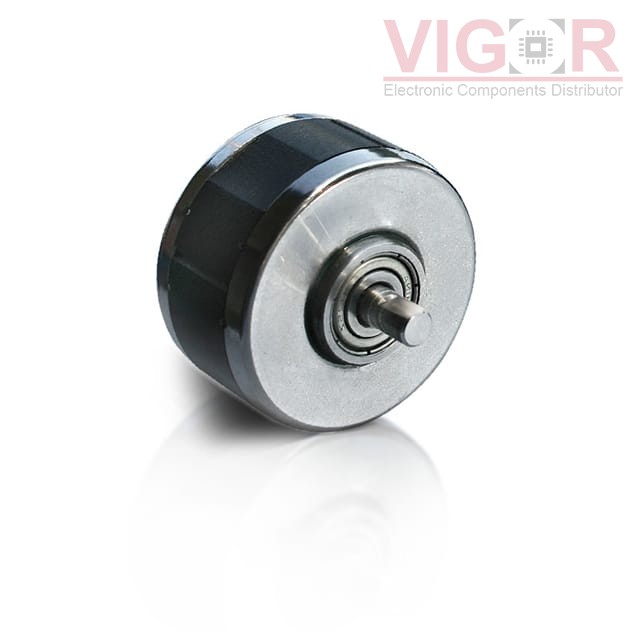

STEPPER MOTOR
