AZ7709-1AE-12DE

AZ7709-1AE-12DE

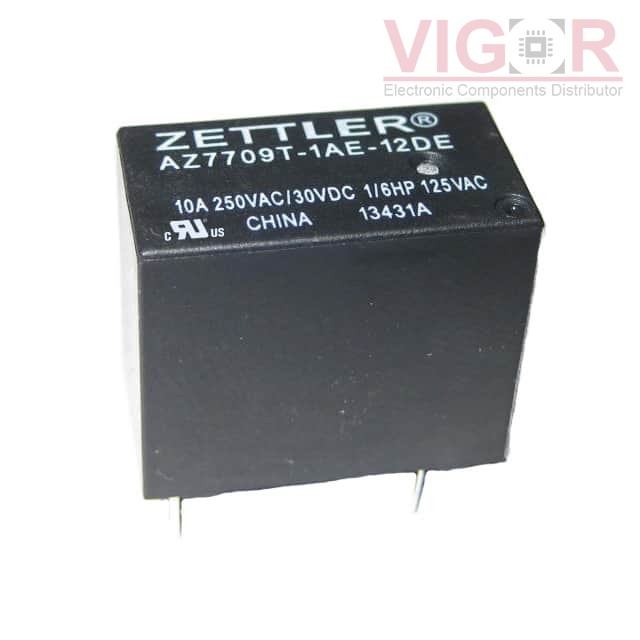

Image is for reference,
please contact us to get the real picture

Part No :

AZ7709-1AE-12DE

Manufacturer
American Zettler
Description
5A MINIATURE POWER RELAY
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
AZ7709-1AE-12DE PDF
Availability
437 pieces
Unit Price
$0.54000

Current price of AZ7709-1AE-12DE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AZ7709-1AE-12DE Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:12VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):5 A
Switching Voltage:250VAC, 30VDC - Max
Coil Current:37.5 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:-
Must Operate Voltage:8.4 VDC
Must Release Voltage:0.6 VDC
Operate Time:8 ms
Release Time:4 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
