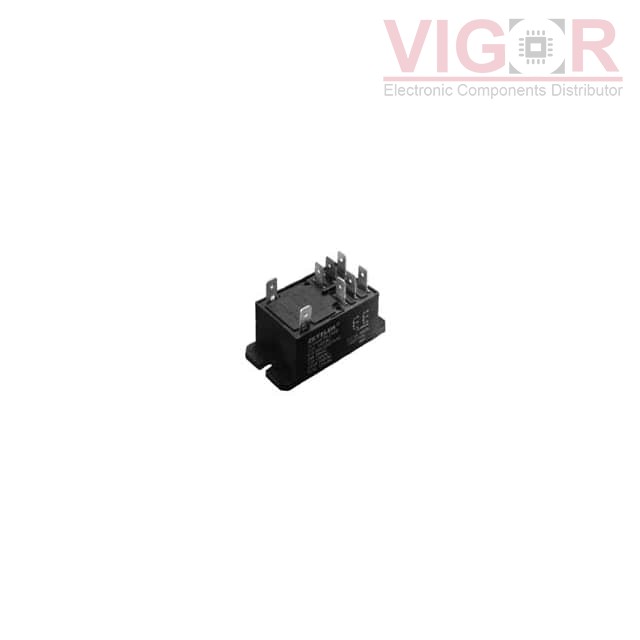

AZ2800-2A-12DE

Image is for reference,
please contact us to get the real picture

Part No :: AZ2800-2A-12DE

Manufacturer: American Zettler

Description: 40A MINIATURE POWER RELAY

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: AZ2800-2A-12DE PDF

Availability: 27 pieces

Unit Price: ~~$6.93000~~

Current price of AZ2800-2A-12DE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AZ2800-2A-12DE Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Mounting Type:	Chassis Mount
Coil Voltage:	12VDC
Contact Form:	DPST-NO (2 Form A)
Contact Rating (Current):	40 A
Switching Voltage:	600VAC, 30VDC - Max
Coil Current:	140 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.187"/0.250"
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	25 ms
Release Time:	25 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Cadmium Oxide (AgCdO)
Relay Type:	EV Charging, Solar

Please confirm the specifications of the products when ordering.
