AZ943-1AH-12DE

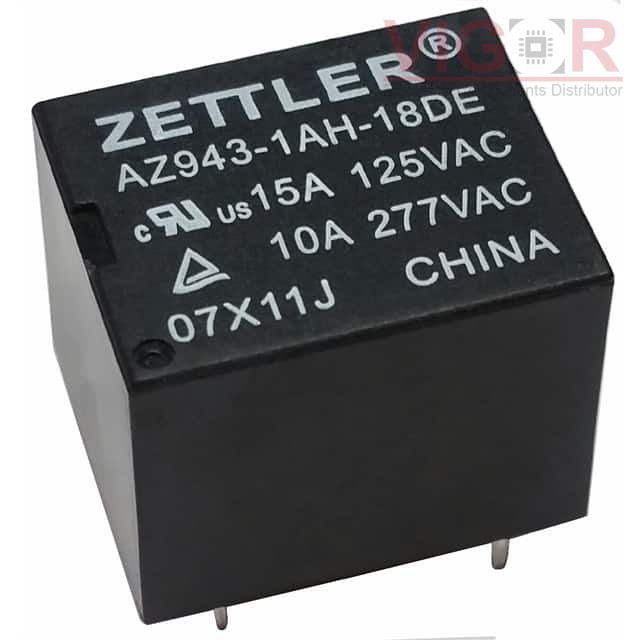

Image is for reference,
please contact us to get the real picture

Part No :: AZ943-1AH-12DE

Manufacturer: American Zettler

Description: 15A SUGAR CUBE RELAY

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: AZ943-1AH-12DE PDF

Availability: 460 pieces

Unit Price: ~~$0.39000~~

Current price of AZ943-1AH-12DE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AZ943-1AH-12DE Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	15 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	30 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	Class B
Must Operate Voltage:	9 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	10 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 90°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
