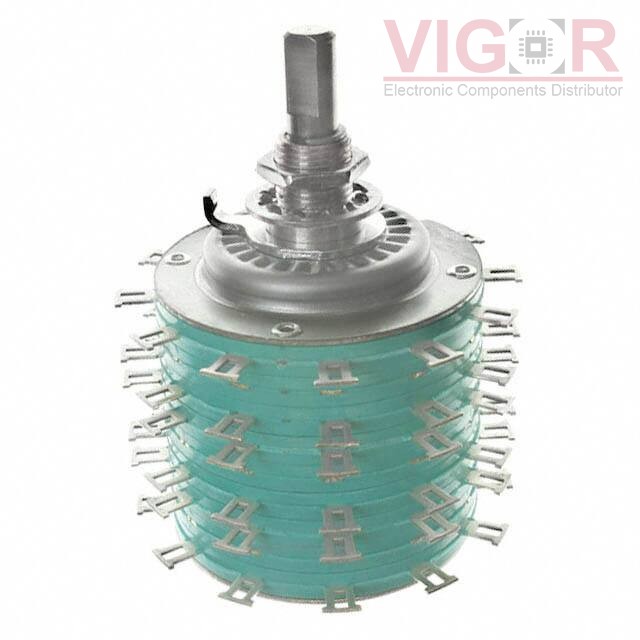

C7D0323N

C7D0323N

Image is for reference,
please contact us to get the real picture

Part No :

C7D0323N

Manufacturer
Electroswitch
Description
SWITCH ROTARY 23POS 500MA 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
C7D0323N PDF
Availability
0 pieces
Unit Price
$96.99000

Current price of C7D0323N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C7D0323N Specifications
Type Description
Series:C7
Package:Bulk
Part Status:Active
Number of Positions:23
Index Stops:Fixed
Number of Decks:3
Number of Poles per Deck:1
Circuit per Deck:SP23T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):500mA (AC), 1A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:28 V
Actuator Type:Flatted (6.35mm Dia)
Actuator Length:14.29mm
Angle of Throw:15°
Contact Material:Brass
Contact Finish:Silver
Mounting Type:Panel Mount
Termination Style:Solder Lug
Features:-
Depth Behind Panel:44.38mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

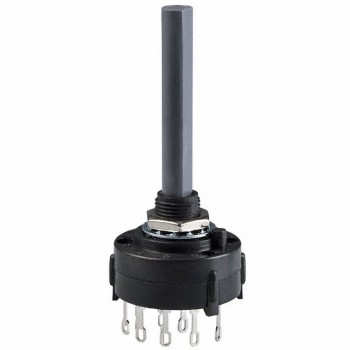

HOT A10815RNZQ

A10815RNZQ

SWITCH ROTARY 8POS 2.5A 125V

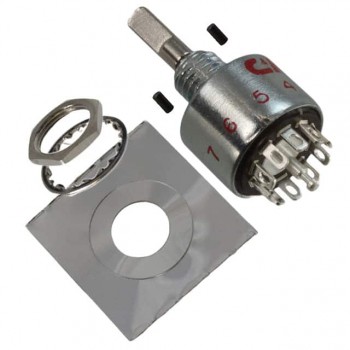

HOT MA00L1NZQD

MA00L1NZQD

SWITCH ROTARY 10POS 250MA 125V

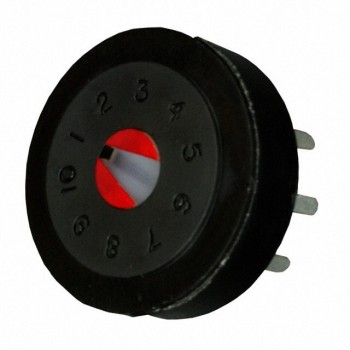

HOT R10815RS02Q
