C3P0304N-A

C3P0304N-A

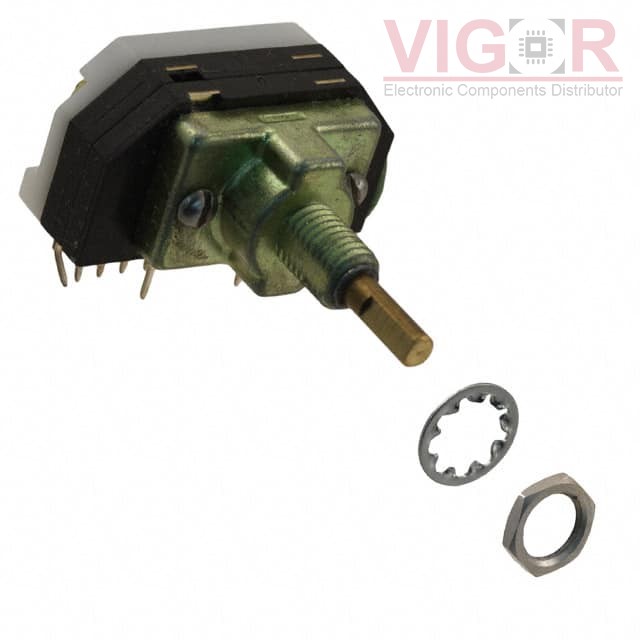

Image is for reference,
please contact us to get the real picture

Part No :

C3P0304N-A

Manufacturer
Electroswitch
Description
SWITCH ROTARY 2-4POS 100MA 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
C3P0304N-A PDF
Availability
0 pieces
Unit Price
$33.36000

Current price of C3P0304N-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C3P0304N-A Specifications
Type Description
Series:C3
Package:Bulk
Part Status:Active
Number of Positions:2 ~ 4
Index Stops:Adjustable
Number of Decks:1
Number of Poles per Deck:3
Circuit per Deck:3P4T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):100mA (AC), 250mA (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:28 V
Actuator Type:Flatted (3.17mm Dia)
Actuator Length:9.52mm
Angle of Throw:30°
Contact Material:Brass
Contact Finish:Silver
Mounting Type:Panel Mount, Through Hole, Right Angle
Termination Style:PC Pin
Features:-
Depth Behind Panel:22.38mm
