2N5684G

2N5684G

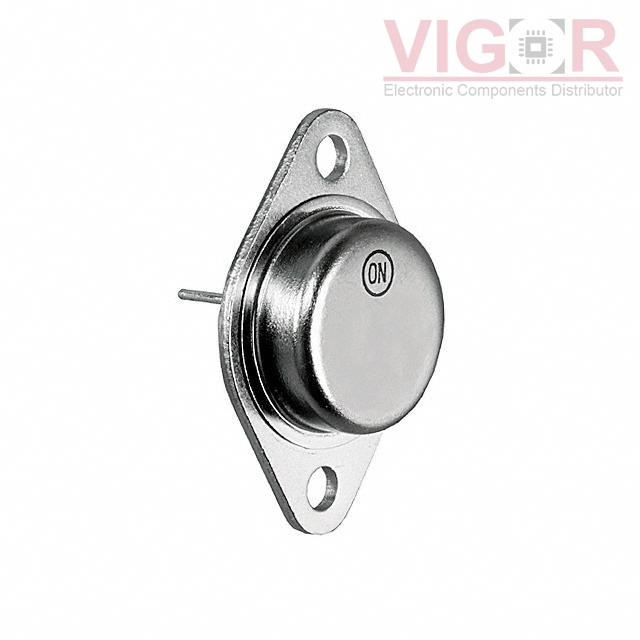

Image is for reference,
please contact us to get the real picture

Part No :

2N5684G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TRANS PNP 80V 50A TO3
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 23 - Aug 27 2025
DataSheet
2N5684G PDF
Availability
25 pieces
Unit Price
$15.89000

Current price of 2N5684G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2N5684G Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Transistor Type:PNP
Current - Collector (Ic) (Max):50 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:5V @ 10A, 50A
Current - Collector Cutoff (Max):1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:15 @ 25A, 2V
Power - Max:300 W
Frequency - Transition:2MHz
Operating Temperature:-65°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-204AE
Supplier Device Package:TO-3
