2SC4301

2SC4301

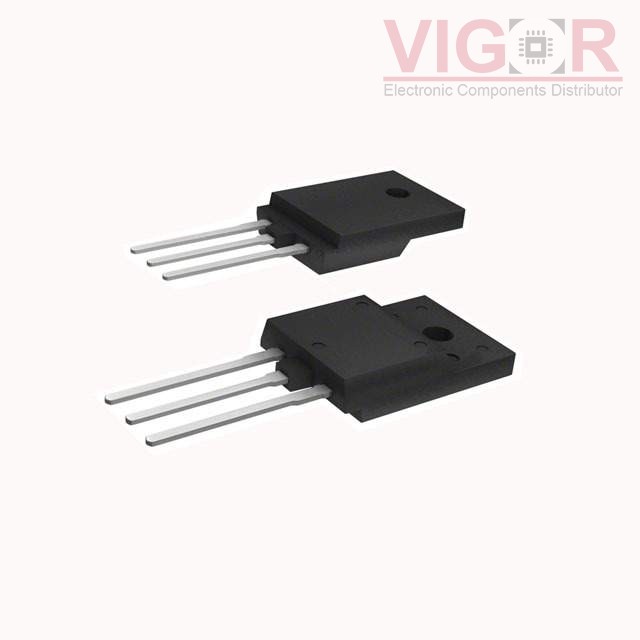

Image is for reference,
please contact us to get the real picture

Part No :

2SC4301

Manufacturer
Sanken Electric Co., Ltd.
Description
TRANS NPN 800V 7A TO3PF
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
2SC4301 PDF
Availability
23 pieces
Unit Price
$3.51000

Current price of 2SC4301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SC4301 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):7 A
Voltage - Collector Emitter Breakdown (Max):800 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 600mA, 3A
Current - Collector Cutoff (Max):100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:10 @ 3A, 4V
Power - Max:80 W
Frequency - Transition:6MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3 Full Pack
Supplier Device Package:TO-3PF
