BSC014N06NSATMA1

BSC014N06NSATMA1

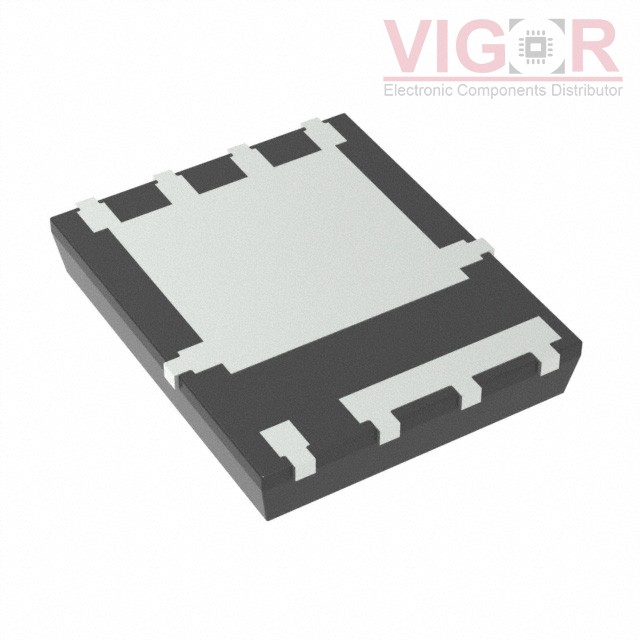

Image is for reference,
please contact us to get the real picture

Part No :

BSC014N06NSATMA1

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CH 60V 30A/100A TDSON7
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
BSC014N06NSATMA1 PDF
Availability
32996 pieces
Unit Price
$3.10000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of BSC014N06NSATMA1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

BSC014N06NSATMA1 Specifications
Type Description
Series:OptiMOS™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:30A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:1.45mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:2.8V @ 120µA
Gate Charge (Qg) (Max) @ Vgs:89 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:6500 pF @ 30 V
FET Feature:-
Power Dissipation (Max):2.5W (Ta), 156W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-TDSON-8-17
Package / Case:8-PowerTDFN
