Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of IPA60R360CFD7XKSA1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

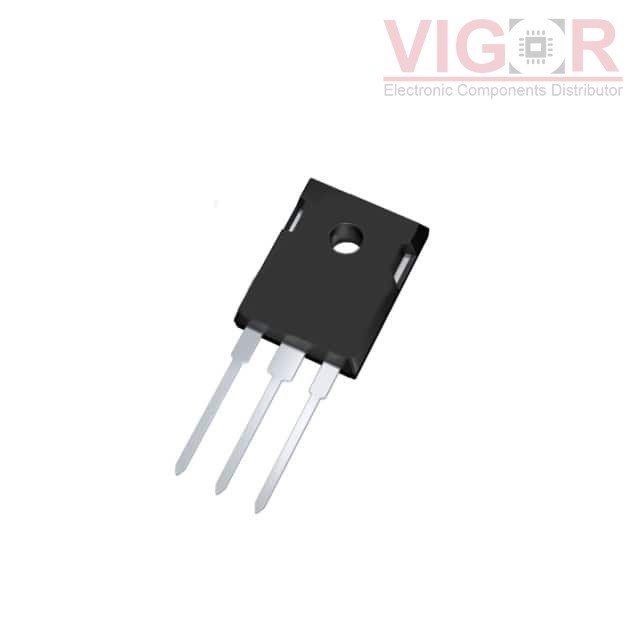

Type | Description |
---|---|
Series: | CoolMOS™ CFD7 |
Package: | Tube |
Part Status: | Active |
FET Type: | N-Channel |
Technology: | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss): | 650 V |
Current - Continuous Drain (Id) @ 25°C: | 5A (Tc) |
Drive Voltage (Max Rds On, Min Rds On): | 10V |
Rds On (Max) @ Id, Vgs: | 360mOhm @ 2.9A, 10V |
Vgs(th) (Max) @ Id: | 4.5V @ 140µA |
Gate Charge (Qg) (Max) @ Vgs: | 14 nC @ 10 V |
Vgs (Max): | ±20V |
Input Capacitance (Ciss) (Max) @ Vds: | 679 pF @ 400 V |
FET Feature: | - |
Power Dissipation (Max): | 23W (Tc) |
Operating Temperature: | -55°C ~ 150°C (TJ) |
Mounting Type: | Through Hole |
Supplier Device Package: | PG-TO220 Full Pack |
Package / Case: | TO-220-3 Full Pack |
