TPH3208LDG

TPH3208LDG

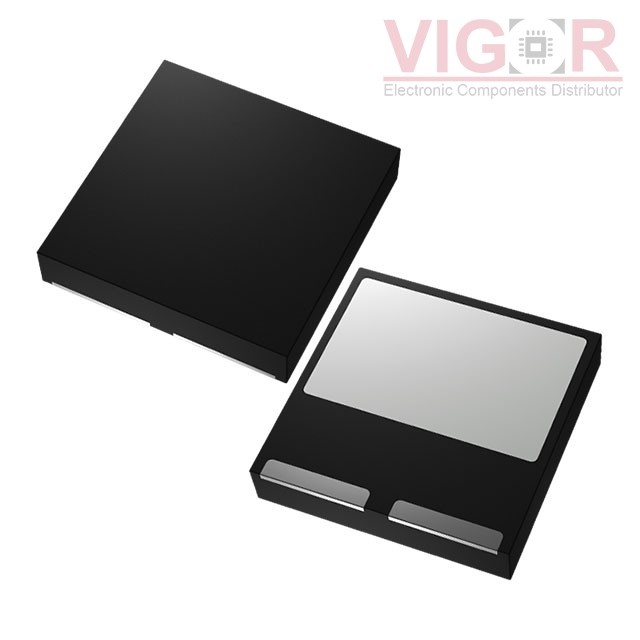

Image is for reference,
please contact us to get the real picture

Part No :

TPH3208LDG

Manufacturer
Transphorm
Description
GANFET N-CH 650V 20A 3PQFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
May 16 - May 20 2024
DataSheet
TPH3208LDG PDF
Availability
285 pieces
Unit Price
$10.81000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of TPH3208LDG is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

TPH3208LDG Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
FET Type:N-Channel
Technology:GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:130mOhm @ 13A, 8V
Vgs(th) (Max) @ Id:2.6V @ 300µA
Gate Charge (Qg) (Max) @ Vgs:14 nC @ 8 V
Vgs (Max):±18V
Input Capacitance (Ciss) (Max) @ Vds:760 pF @ 400 V
FET Feature:-
Power Dissipation (Max):96W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:3-PQFN (8x8)
Package / Case:3-PowerDFN
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT R6050JNZ4C13

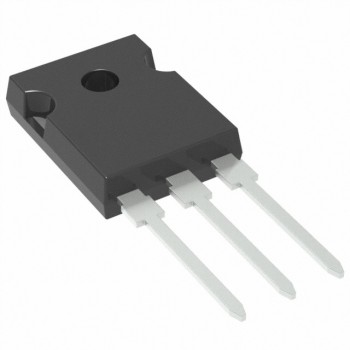

R6050JNZ4C13
