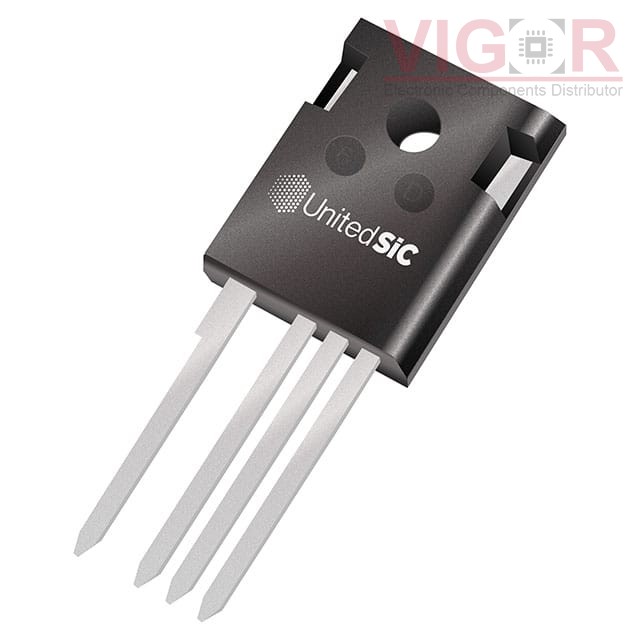

UF3SC120009K4S

UF3SC120009K4S

Image is for reference,
please contact us to get the real picture

Part No :

UF3SC120009K4S

Manufacturer
UnitedSiC
Description
SICFET N-CH 1200V 120A TO247-4
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
May 16 - May 20 2024
DataSheet
UF3SC120009K4S PDF
Availability
200 pieces
Unit Price
$128.00000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of UF3SC120009K4S is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

UF3SC120009K4S Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
FET Type:N-Channel
Technology:SiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss):1200 V
Current - Continuous Drain (Id) @ 25°C:120A (Tc)
Drive Voltage (Max Rds On, Min Rds On):12V
Rds On (Max) @ Id, Vgs:11mOhm @ 100A, 12V
Vgs(th) (Max) @ Id:6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:234 nC @ 15 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:8512 pF @ 100 V
FET Feature:-
Power Dissipation (Max):789W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-247-4
Package / Case:TO-247-4
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IPP16CN10NG

IPP16CN10NG

POWER FIELD-EFFECT TRANSISTOR, 5
HOT IPD80R2K8CEATMA1

IPD80R2K8CEATMA1

MOSFET N-CH 800V 1.9A TO252-3

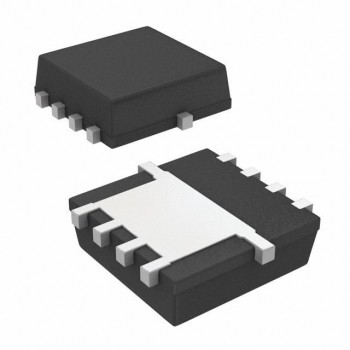

HOT SQS405EN-T1_GE3
