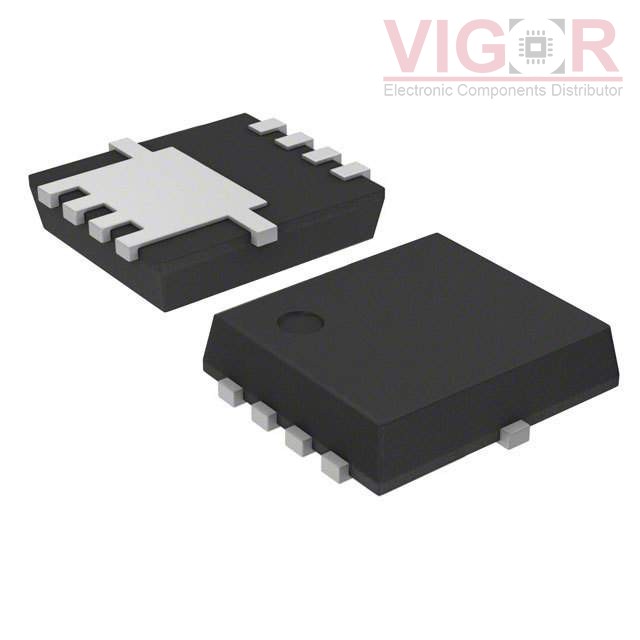

TPH9R506PL,LQ

Image is for reference,
please contact us to get the real picture

Part No :: TPH9R506PL,LQ

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 60V 34A 8SOP

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: TPH9R506PL,LQ PDF

Availability: 8888 pieces

Unit Price: ~~$0.79000~~

Current price of TPH9R506PL,LQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPH9R506PL,LQ Specifications

Type	Description
Series:	U-MOSIX-H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	9.5mOhm @ 17A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs:	21 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1910 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	830mW (Ta), 81W (Tc)
Operating Temperature:	175°C
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP Advance (5x5)
Package / Case:	8-PowerVDFN

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

IPB65R190CFDAATMA1

MOSFET N-CH 650V 17.5A D2PAK

HOT

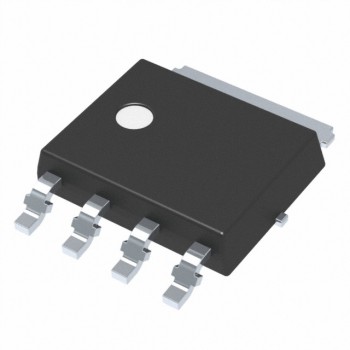

NVMYS2D9N04CLTWG
