TPN11006PL,LQ

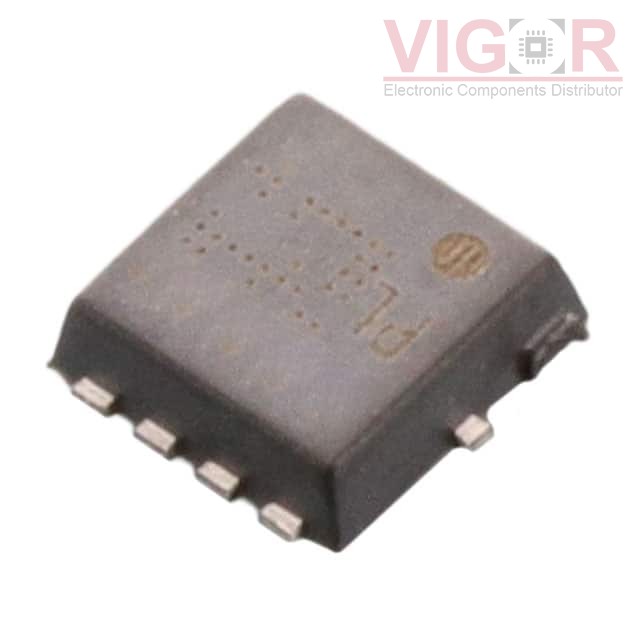

Image is for reference,
please contact us to get the real picture

Part No :: TPN11006PL,LQ

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 60V 26A 8TSON

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: TPN11006PL,LQ PDF

Availability: 0 pieces

Unit Price: ~~$0.71000~~

Current price of TPN11006PL,LQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPN11006PL,LQ Specifications

Type	Description
Series:	U-MOSIX-H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	26A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	11.4mOhm @ 13A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs:	17 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1625 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	610mW (Ta), 61W (Tc)
Operating Temperature:	175°C
Mounting Type:	Surface Mount
Supplier Device Package:	8-TSON Advance (3.3x3.3)
Package / Case:	8-PowerVDFN
