TPH3206PSB

TPH3206PSB

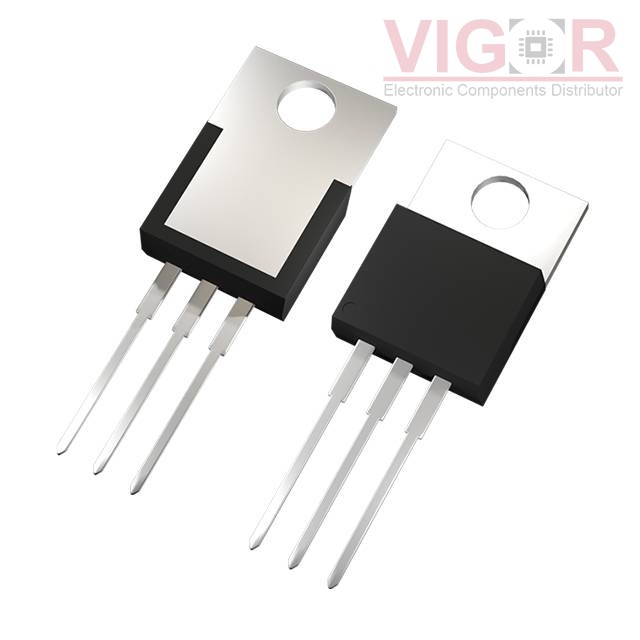

Image is for reference,
please contact us to get the real picture

Part No :

TPH3206PSB

Manufacturer
Transphorm
Description
GANFET N-CH 650V 16A TO220AB
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
May 18 - May 22 2024
DataSheet
TPH3206PSB PDF
Availability
1490 pieces
Unit Price
$10.68000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of TPH3206PSB is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

TPH3206PSB Specifications
Type Description
Series:-
Package:Tube
Part Status:Last Time Buy
FET Type:N-Channel
Technology:GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:16A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:180mOhm @ 10A, 8V
Vgs(th) (Max) @ Id:2.6V @ 500µA
Gate Charge (Qg) (Max) @ Vgs:6.2 nC @ 4.5 V
Vgs (Max):±18V
Input Capacitance (Ciss) (Max) @ Vds:720 pF @ 480 V
FET Feature:-
Power Dissipation (Max):81W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220AB
Package / Case:TO-220-3
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TK10P60W,RVQ

TK10P60W,RVQ

MOSFET N CH 600V 9.7A DPAK

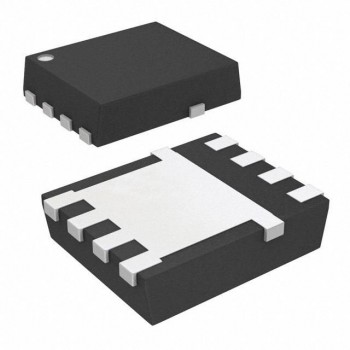

HOT CSD19534Q5A
