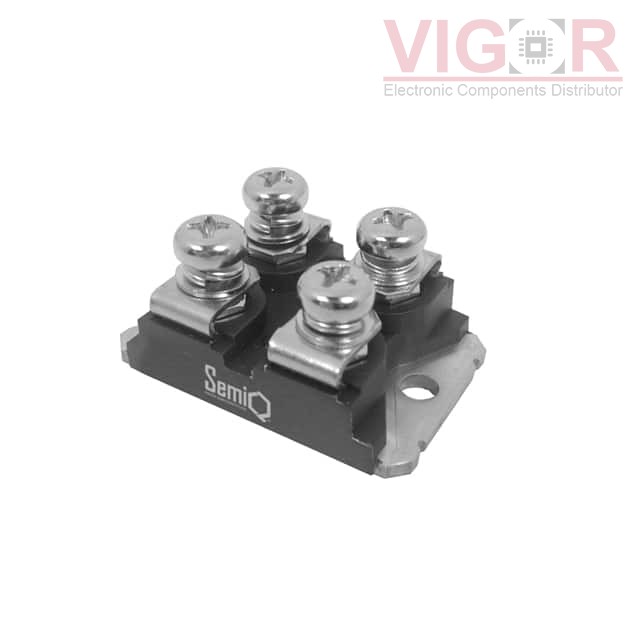

GSXD120A015S1-D3

GSXD120A015S1-D3

Image is for reference,
please contact us to get the real picture

Part No :

GSXD120A015S1-D3

Manufacturer
SemiQ
Description
DIODE SCHOTTKY 150V 120A SOT227
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
GSXD120A015S1-D3 PDF
Availability
0 pieces
Unit Price
$15.55500

Current price of GSXD120A015S1-D3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

GSXD120A015S1-D3 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Diode Configuration:2 Independent
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):150 V
Current - Average Rectified (Io) (per Diode):120A
Voltage - Forward (Vf) (Max) @ If:880 mV @ 120 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:3 mA @ 150 V
Operating Temperature - Junction:-40°C ~ 150°C
Mounting Type:Chassis Mount
Package / Case:SOT-227-4, miniBLOC
Supplier Device Package:SOT-227
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

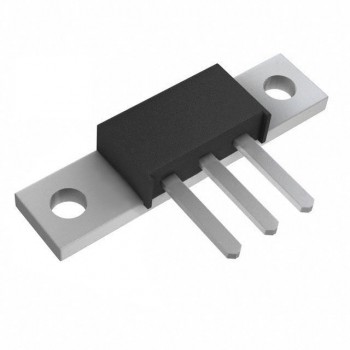

HOT 82CNQ030S2

82CNQ030S2

DIODE ARRAY SCHOTTKY 30V PRM2

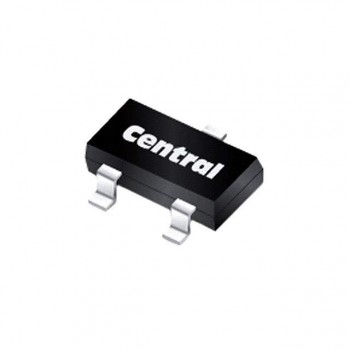

HOT CMPD6001S TR PBFREE

CMPD6001S TR PBFREE

DIODE ARRAY GP 75V 250MA SOT23

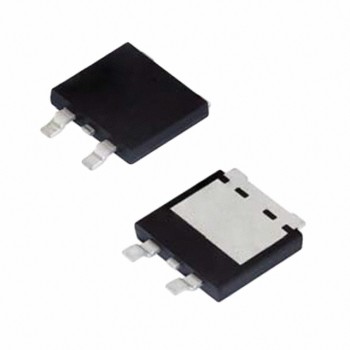

HOT V20DM60CHM3/I
