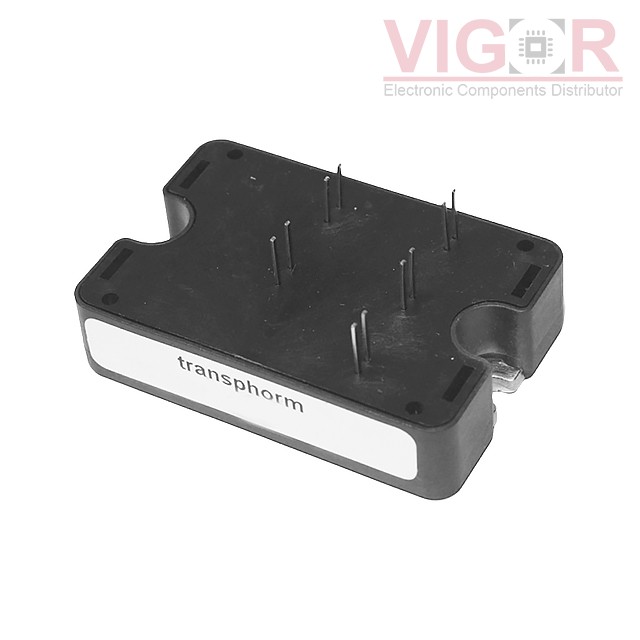

TPD3215M

TPD3215M

Image is for reference,
please contact us to get the real picture

Part No :

TPD3215M

Manufacturer
Transphorm
Description
GANFET 2N-CH 600V 70A MODULE
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
May 18 - May 22 2024
DataSheet
TPD3215M PDF
Availability
22 pieces
Unit Price
$175.13000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of TPD3215M is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

TPD3215M Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
FET Type:2 N-Channel (Half Bridge)
FET Feature:GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss):600V
Current - Continuous Drain (Id) @ 25°C:70A (Tc)
Rds On (Max) @ Id, Vgs:34mOhm @ 30A, 8V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:28nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds:2260pF @ 100V
Power - Max:470W
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:Module
Supplier Device Package:Module
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

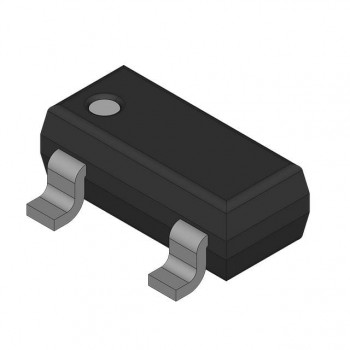

HOT PMV27UPEA,215
