ESC15DRXH

ESC15DRXH

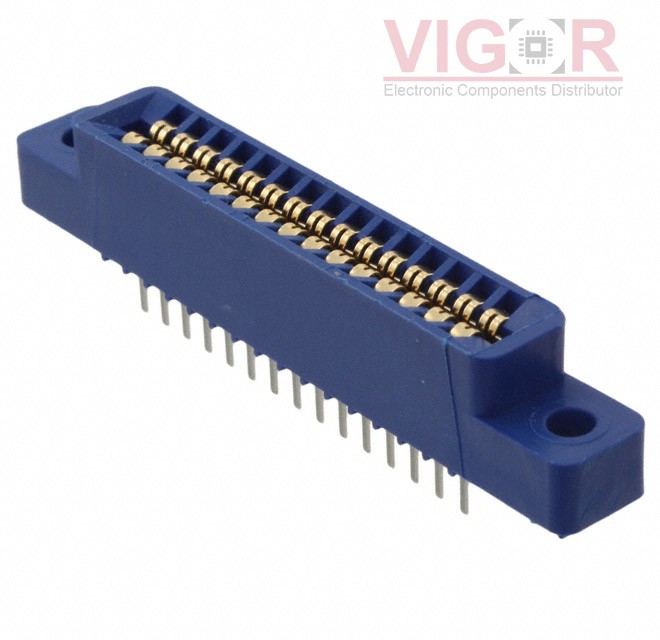

Image is for reference,
please contact us to get the real picture

Part No :

ESC15DRXH

Manufacturer
Sullins Connector Solutions
Description
CONN EDGE DUAL FMALE 30POS 0.100
Catalog
Card Edge Connectors - Edgeboard Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
ESC15DRXH PDF
Availability
0 pieces
Unit Price
$5.46500

Current price of ESC15DRXH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESC15DRXH Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:15
Number of Positions:30
Card Thickness:0.062" (1.57mm)
Number of Rows:2
Pitch:0.100" (2.54mm)
Read Out:Dual
Features:-
Mounting Type:Through Hole
Termination:Solder
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Contact Type:Full Bellows
Color:Blue
Flange Feature:Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:-65°C ~ 125°C
