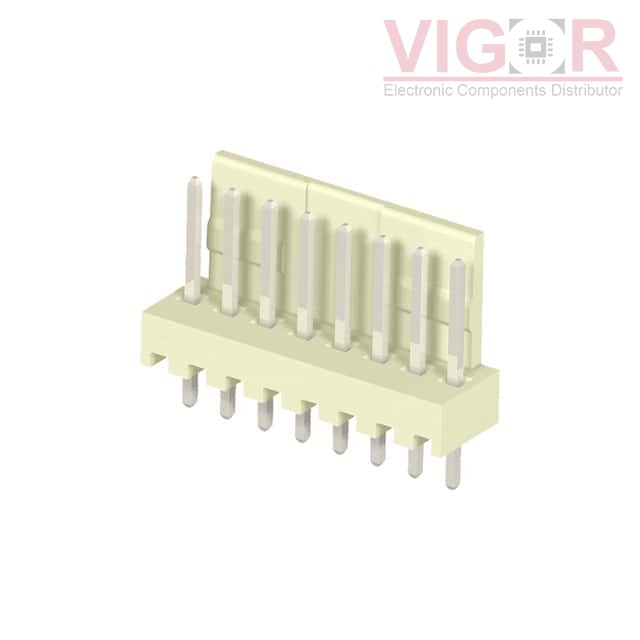

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CI3102P1V00 -NH is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | CI31 |
Package: | Bag |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 2 |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Number of Positions Loaded: | All |
Style: | Board to Cable/Wire |
Shrouding: | Shrouded - 1 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Friction Lock |
Contact Length - Mating: | 0.295" (7.49mm) |
Contact Length - Post: | 0.134" (3.40mm) |
Overall Contact Length: | 0.559" (14.20mm) |
Insulation Height: | 0.453" (11.50mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | 120.0µin (3.05µm) |
Contact Finish - Post: | Tin |
Contact Material: | Brass |
Insulation Material: | Thermoplastic, Halogen Free |
Features: | - |
Operating Temperature: | -25°C ~ 85°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Natural |
Current Rating (Amps): | 3A |
Voltage Rating: | 250VAC |
