CI1503M1HR0-NH

CI1503M1HR0-NH

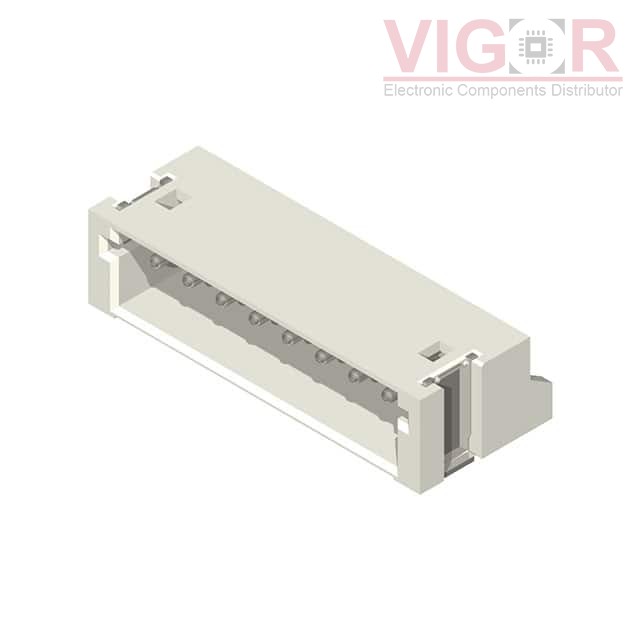

Image is for reference,
please contact us to get the real picture

Part No :

CI1503M1HR0-NH

Manufacturer
CviLux
Description
3 POS 1.50MM(.059) WIRE TO BOARD
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
CI1503M1HR0-NH PDF
Availability
5600 pieces
Unit Price
$0.24000

Current price of CI1503M1HR0-NH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CI1503M1HR0-NH Specifications
Type Description
Series:CI15
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.100" (2.54mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.148" (3.75mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:120.0µin (3.05µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA46), Nylon 4/6
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1A (AC/DC)
Voltage Rating:50VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

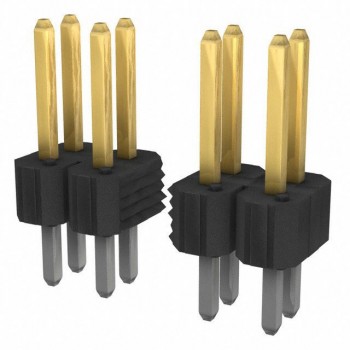

HOT 67997-234HLF

67997-234HLF

CONN HEADER VERT 34POS 2.54MM

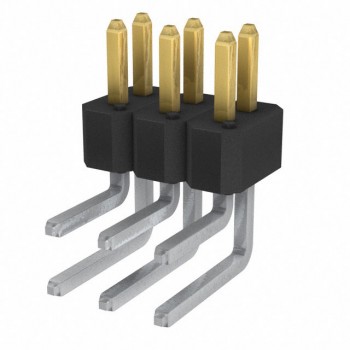

HOT 77317-110-06LF

77317-110-06LF

CONN HEADER R/A 6POS 2.54MM

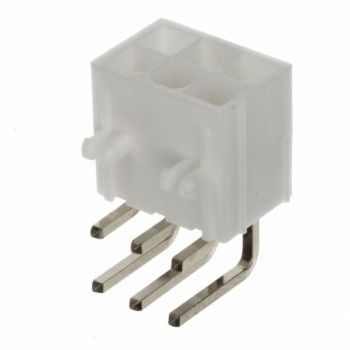

HOT 0039301062
