Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of TSHC-104-D-16-040-SD-T-LF is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | TSHC-1-SD |
Package: | Bulk |
Part Status: | Active |

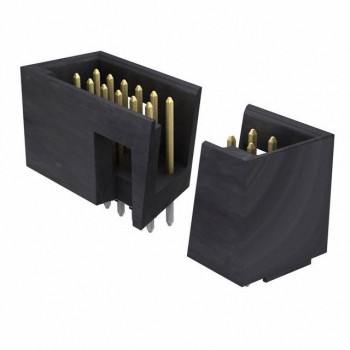

Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 8 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.100" (2.54mm) |
Number of Positions Loaded: | All |
Style: | Board to Board |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.040" (1.02mm) |
Contact Length - Post: | 0.299" (7.60mm) |
Overall Contact Length: | 0.630" (16.00mm) |
Insulation Height: | 0.291" (7.40mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | - |
Contact Finish - Post: | Tin |
Contact Material: | Brass |
Insulation Material: | Polybutylene Terephthalate (PBT) |
Features: | - |
Operating Temperature: | -40°C ~ 105°C |
Ingress Protection: | - |
Material Flammability Rating: | - |
Insulation Color: | Black |
Current Rating (Amps): | 3A |
Voltage Rating: | - |
