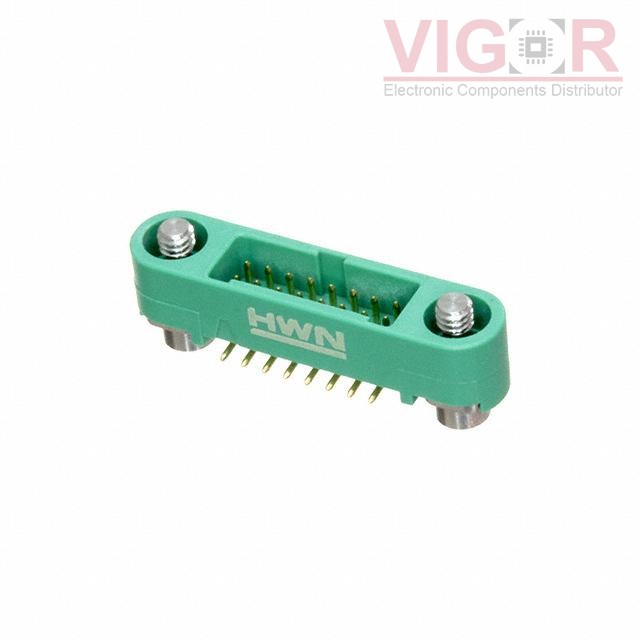

G125-MS11605M3P

G125-MS11605M3P

Image is for reference,
please contact us to get the real picture

Part No :

G125-MS11605M3P

Manufacturer
Harwin
Description
CONN HEADER SMD 16POS 1.25MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
G125-MS11605M3P PDF
Availability
50 pieces
Unit Price
$17.69000

Current price of G125-MS11605M3P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

G125-MS11605M3P Specifications
Type Description
Series:Gecko SL Reverse Fix
Package:Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.049" (1.25mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Screw Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.193" (4.90mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features:Mating Flange, Mounting Flange, Pick and Place
Operating Temperature:-65°C ~ 150°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):2A
Voltage Rating:450V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

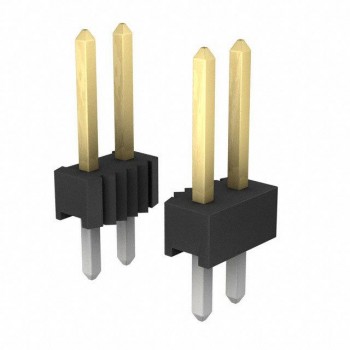

HOT 6-146255-0

6-146255-0

CONN HEADER VERT 20POS 2.54MM
HOT FTSH-112-05-S-DV-A

FTSH-112-05-S-DV-A

CONN HEADER SMD 24POS 1.27MM

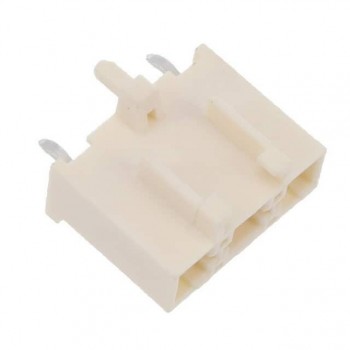

HOT 917745-1
