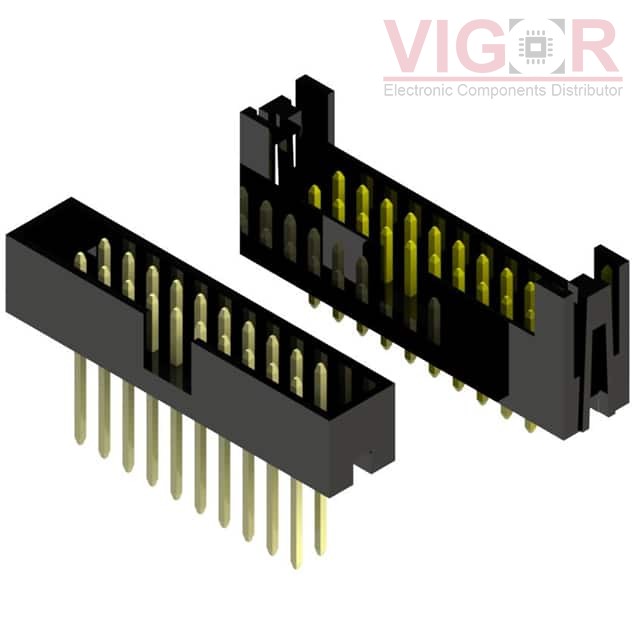

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of SHTSHC-203-D-03-090-G-LF is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | SHTSHC-2 |
Package: | Bulk |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.079" (2.00mm) |
Number of Positions: | 6 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.079" (2.00mm) |
Number of Positions Loaded: | All |
Style: | Board to Board |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | - |
Contact Length - Post: | 0.090" (2.29mm) |
Overall Contact Length: | 0.323" (8.20mm) |
Insulation Height: | 0.220" (5.60mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
Contact Finish - Post: | Gold |
Contact Material: | Copper Alloy |
Insulation Material: | Polyamide (PA6T), Nylon 6T |
Features: | - |
Operating Temperature: | -40°C ~ 105°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | 1A |
Voltage Rating: | - |
