PR20204HBDN

PR20204HBDN

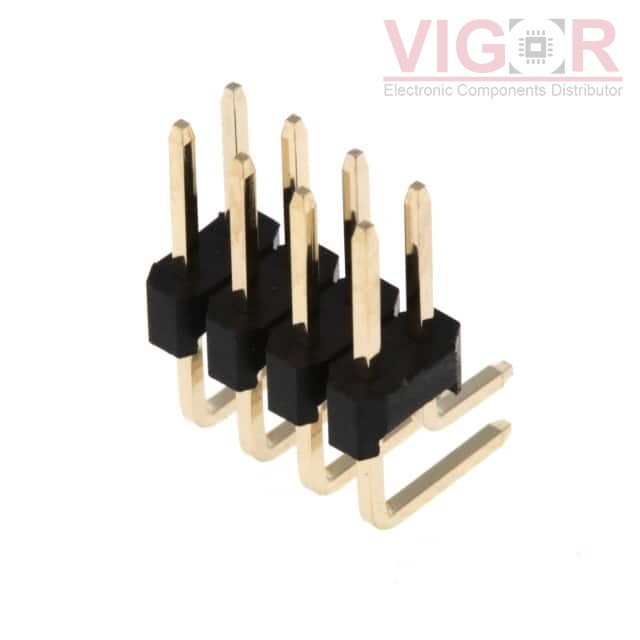

Image is for reference,
please contact us to get the real picture

Part No :

PR20204HBDN

Manufacturer
RIA Connect / METZ CONNECT
Description
PIN HEADER, THR, DUAL ROW, .100"
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
PR20204HBDN PDF
Availability
2856 pieces
Unit Price
$0.31000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PR20204HBDN is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

PR20204HBDN Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.236" (6.00mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:-
Contact Material:Copper Zinc
Insulation Material:Polyethylene
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
