PTSHS-503-D-02-T-LF

PTSHS-503-D-02-T-LF

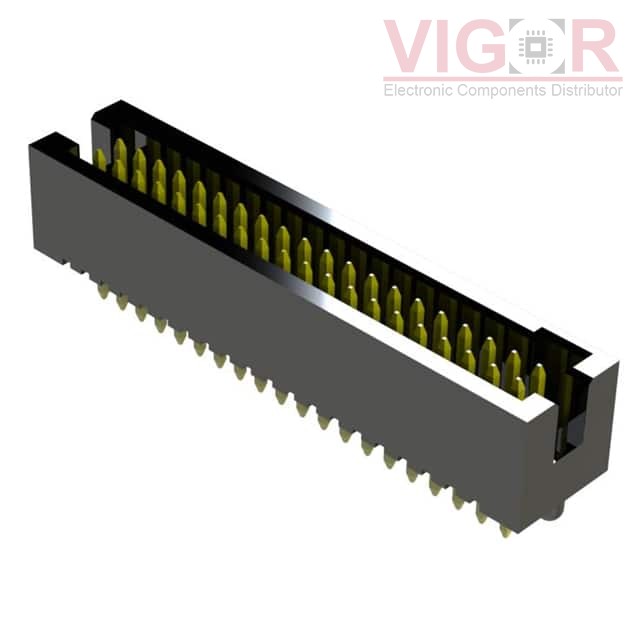

Image is for reference,
please contact us to get the real picture

Part No :

PTSHS-503-D-02-T-LF

Manufacturer
Major League Electronics
Description
POLARIZED TERMINAL STRIP
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
PTSHS-503-D-02-T-LF PDF
Availability
334 pieces
Unit Price
$0.15000

Current price of PTSHS-503-D-02-T-LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTSHS-503-D-02-T-LF Specifications
Type Description
Series:PTSHS-5
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:6
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.090" (2.29mm)
Contact Length - Post:0.090" (2.29mm)
Overall Contact Length:-
Insulation Height:0.224" (5.69mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:-
