Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of A222Y20R is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

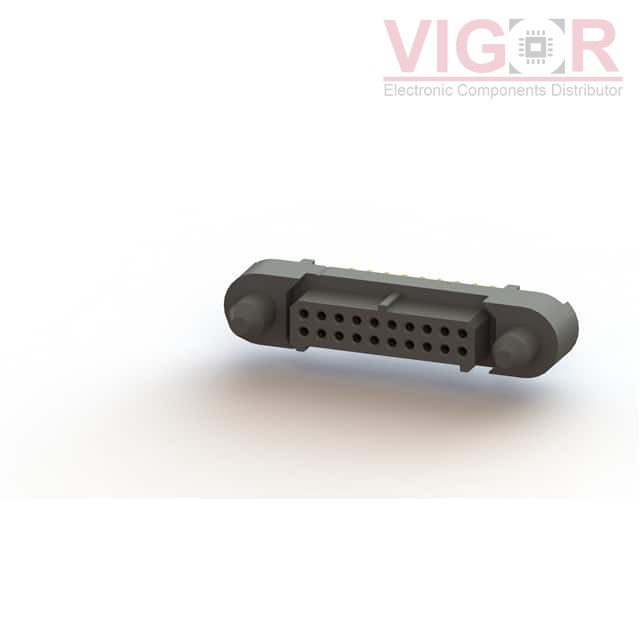

Type | Description |
---|---|
Series: | - |
Package: | Bulk |
Part Status: | Active |
Connector Type: | Receptacle |
Contact Type: | Female Socket |
Style: | Board to Board |
Number of Positions: | 20 |
Number of Positions Loaded: | All |
Pitch - Mating: | 0.039" (1.00mm) |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.039" (1.00mm) |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 5.90µin (0.150µm) |
Insulation Color: | Black |
Insulation Height: | 0.173" (4.40mm) |
Contact Length - Post: | 0.122" (3.10mm) |
Operating Temperature: | -65°C ~ 200°C |
Material Flammability Rating: | UL94 V-0 |
Contact Finish - Post: | Gold |
Mated Stacking Heights: | - |
Ingress Protection: | - |
Features: | Guide Pin, Mating Guide |
Current Rating (Amps): | 2.5A |
Voltage Rating: | 600VAC |
