Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of HF601-30-12VE is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

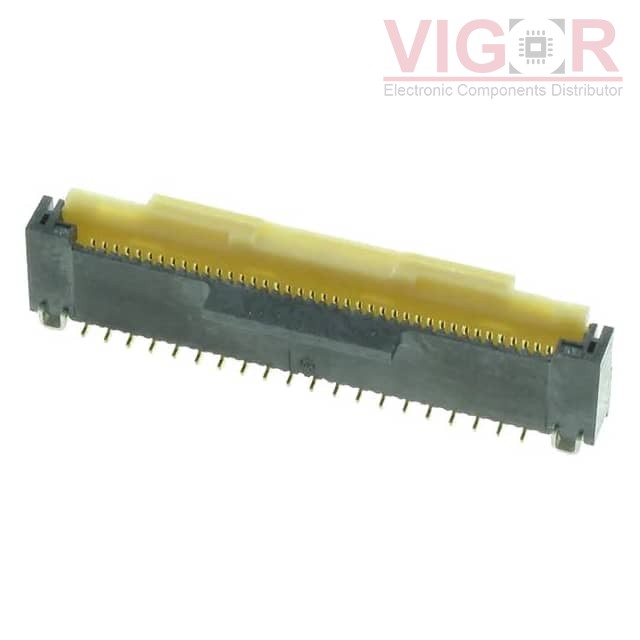

Type | Description |
---|---|
Series: | HF601 |
Package: | Tape & Reel (TR) |
Part Status: | Active |
Flat Flex Type: | FFC, FPC |
Mounting Type: | Surface Mount |
Connector/Contact Type: | Contacts, Vertical - 2 Sided |
Number of Positions: | 30 |
Pitch: | 0.020" (0.50mm) |
Termination: | Solder |
FFC, FCB Thickness: | 0.30mm |
Height Above Board: | 0.209" (5.30mm) |
Locking Feature: | Flip Lock |
Cable End Type: | Tabbed |
Contact Material: | Copper Alloy |
Contact Finish: | Gold |
Housing Material: | Liquid Crystal Polymer (LCP), Glass Filled |
Actuator Material: | Polyamide (PA9T), Nylon 9T |
Features: | Solder Retention, Zero Insertion Force (ZIF) |
Voltage Rating: | 50V |
Operating Temperature: | -20°C ~ 85°C |
Material Flammability Rating: | - |
