Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 23003431-02 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | Middle |
Package: | Bulk |
Part Status: | Active |

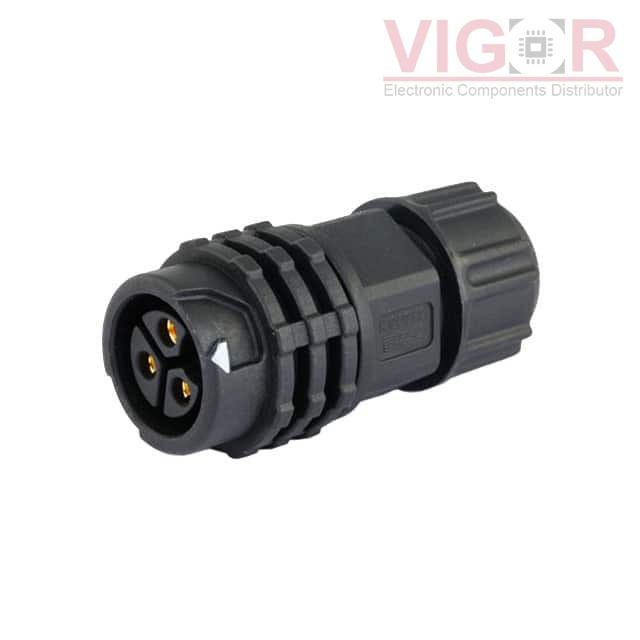

Connector Type: | Receptacle, Female Sockets |
Number of Positions: | 3 |
Shell Size - Insert: | - |
Shell Size, MIL: | - |
Mounting Type: | Free Hanging (In-Line) |
Mounting Feature: | - |
Termination: | Solder Cup |
Fastening Type: | Push-Twist |
Orientation: | Keyed |
Shell Material: | Polyamide (PA66), Nylon 6/6 |
Shell Finish: | - |
Contact Finish - Mating: | Gold |
Color: | Black |
Ingress Protection: | IP67 - Dust Tight, Waterproof |
Material Flammability Rating: | - |
Features: | Backshell |
Shielding: | Unshielded |
Current Rating (Amps): | 20A |
Voltage Rating: | 300V |
Cable Opening: | 0.256" ~ 0.374" (6.50mm ~ 9.50mm) |
Operating Temperature: | -45°C ~ 105°C |
