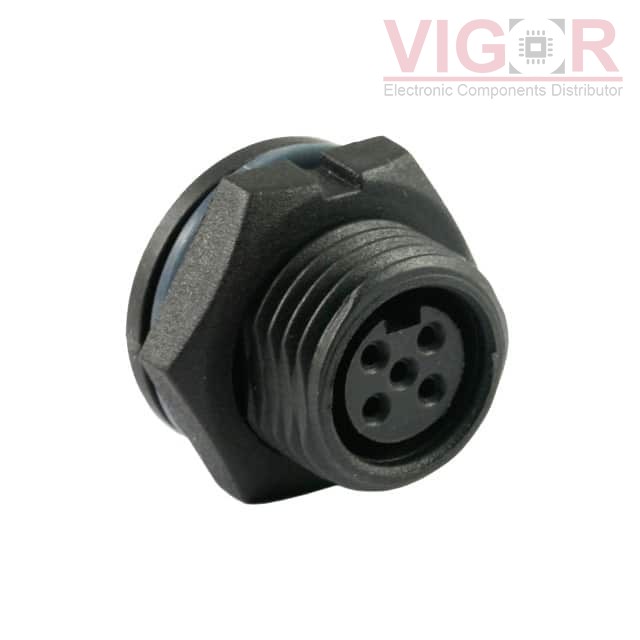

22005615-01

22005615-01

Image is for reference,
please contact us to get the real picture

Part No :

22005615-01

Manufacturer
Chogori Technologies
Description
CONN RCPT FMALE 5POS SOLDER CUP
Catalog
Circular Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
22005615-01 PDF
Availability
93 pieces
Unit Price
$5.65000

Current price of 22005615-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

22005615-01 Specifications
Type Description
Series:Standard
Package:Bulk
Part Status:Active
Connector Type:Receptacle, Female Sockets
Number of Positions:5
Shell Size - Insert:-
Shell Size, MIL:-
Mounting Type:Panel Mount
Mounting Feature:Bulkhead - Front Side Nut
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Shell Material:Polyamide (PA66), Nylon 6/6
Shell Finish:-
Contact Finish - Mating:Gold
Color:Black
Ingress Protection:IP68 - Dust Tight, Waterproof
Material Flammability Rating:-
Features:-
Shielding:Unshielded
Current Rating (Amps):5A
Voltage Rating:60V
Cable Opening:-
Operating Temperature:-45°C ~ 105°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AE299E12F4S

AE299E12F4S

CONN RCPT FMALE 4POS GOLD CRIMP

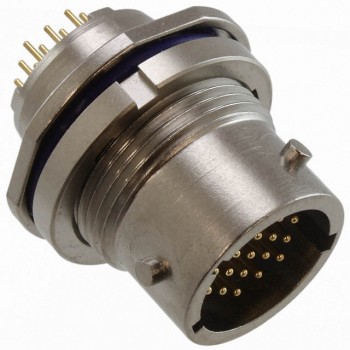

HOT MKJ3C7F9-19BN

MKJ3C7F9-19BN

CONN RCPT MALE 19POS GOLD SOLDER

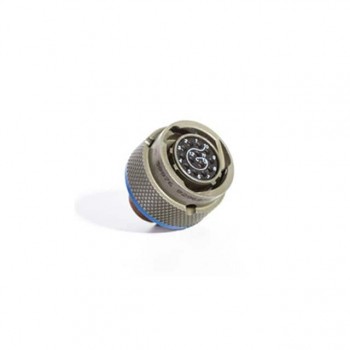

HOT MS27472T18F11S
