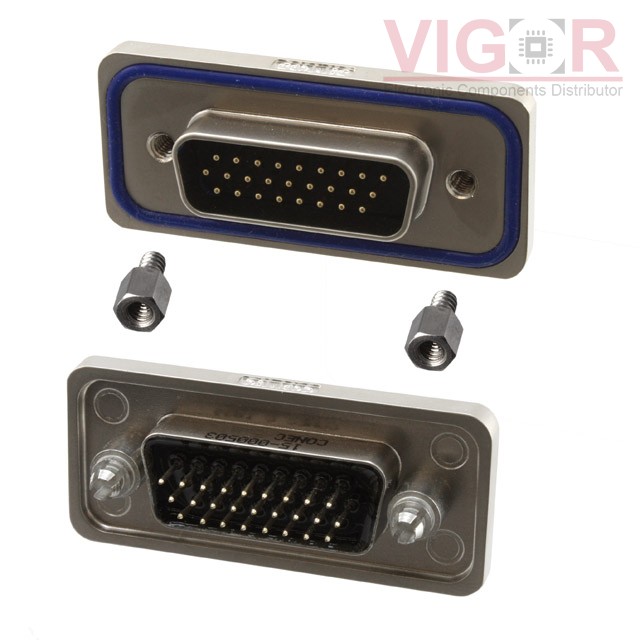

15-000503

15-000503

Image is for reference,
please contact us to get the real picture

Part No :

15-000503

Manufacturer
CONEC
Description
CONN D-SUB HD PLUG 26POS PNL MNT
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
15-000503 PDF
Availability
7 pieces
Unit Price
$19.53000

Current price of 15-000503 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

15-000503 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Connector Style:D-Sub, High Density
Connector Type:Plug, Male Pins
Number of Positions:26
Number of Rows:3
Mounting Type:Panel Mount, Through Hole
Shell Size, Connector Layout:2 (DA, A) High Density
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (4-40)
Termination:Solder
Shell Material, Finish:Zinc Die Cast, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:8.00µin (0.203µm)
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Current Rating (Amps):3A
Backset Spacing:-
Features:Board Lock
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

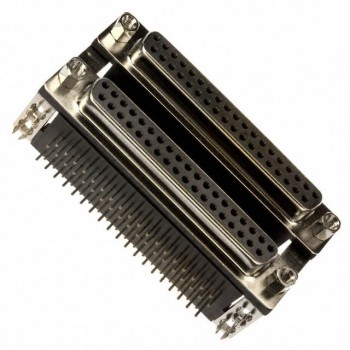

HOT 178-037-513R571

178-037-513R571

CONN D-SUB RCPT 37POS R/A SLDR

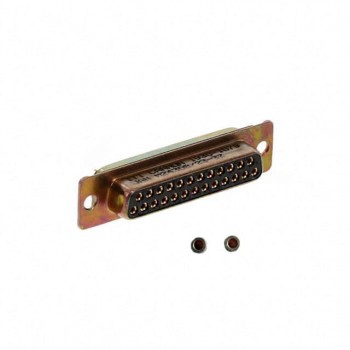

HOT M24308/23-3Z
