CZ3A02

CZ3A02

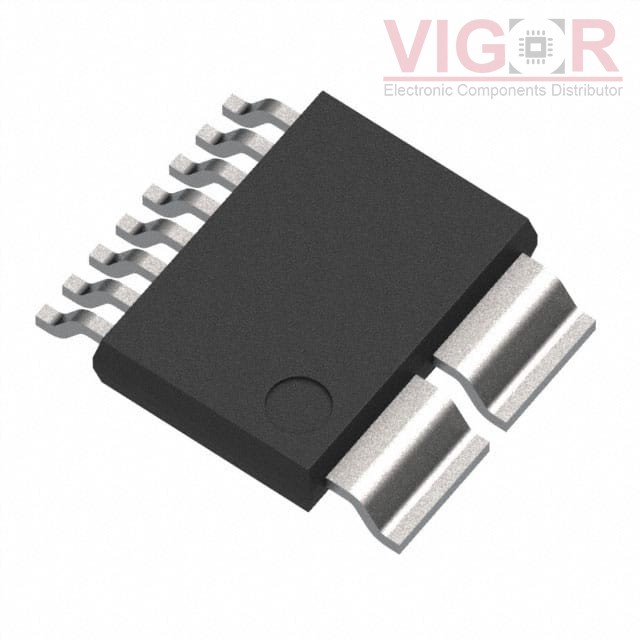

Image is for reference,
please contact us to get the real picture

Part No :

CZ3A02

Manufacturer
Asahi Kasei Microdevices / AKM Semiconductor
Description
3.3V OUTPUT ACCURATE CORELESS CU
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
CZ3A02 PDF
Availability
1000 pieces
Unit Price
$13.28000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CZ3A02 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

CZ3A02 Specifications
Type Description
Series:CZ
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:AC/DC
Sensor Type:Hall Effect, Open Loop
Current - Sensing:15.5A
Number of Channels:1
Output:Voltage
Sensitivity:100mV/A
Frequency:-
Linearity:±0.6%
Accuracy:±2.1%
Voltage - Supply:3V ~ 3.6V
Response Time:1µs
Current - Supply (Max):16mA (Typ)
Operating Temperature:-40°C ~ 85°C (TA)
Polarization:Unidirectional
Mounting Type:Surface Mount
Package / Case:16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
Supplier Device Package:-
