CZ3A04

CZ3A04

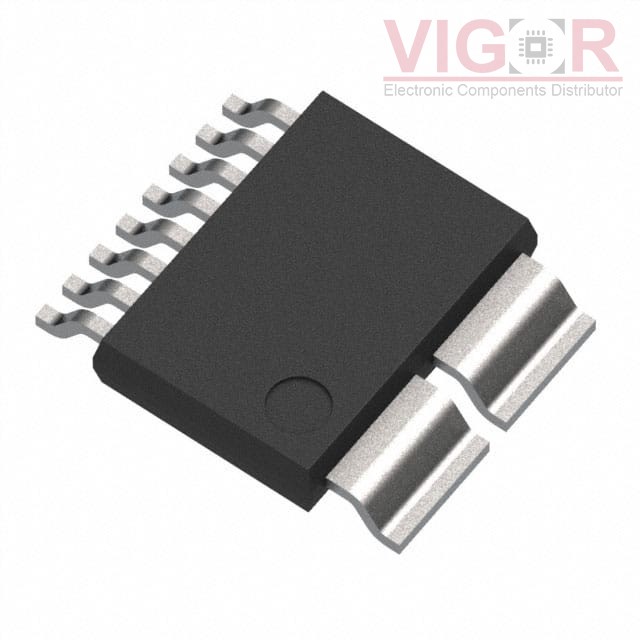

Image is for reference,
please contact us to get the real picture

Part No :

CZ3A04

Manufacturer
Asahi Kasei Microdevices / AKM Semiconductor
Description
3.3V OUTPUT ACCURATE CORELESS CU
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
CZ3A04 PDF
Availability
913 pieces
Unit Price
$9.83000

Current price of CZ3A04 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CZ3A04 Specifications
Type Description
Series:CZ
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:AC/DC
Sensor Type:Hall Effect, Open Loop
Current - Sensing:32.2A
Number of Channels:1
Output:Voltage
Sensitivity:48mV/A
Frequency:-
Linearity:±0.6%
Accuracy:±2.1%
Voltage - Supply:3V ~ 3.6V
Response Time:1µs
Current - Supply (Max):16mA (Typ)
Operating Temperature:-40°C ~ 85°C (TA)
Polarization:Unidirectional
Mounting Type:Surface Mount
Package / Case:16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
Supplier Device Package:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CR4150-30

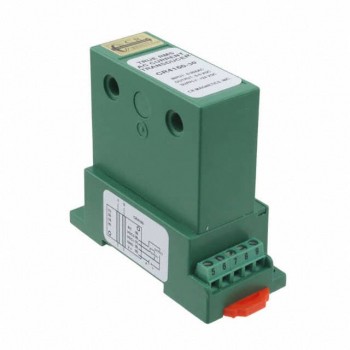

CR4150-30

SENSOR CURRENT XFMR 30A AC
HOT L34S1T0D15

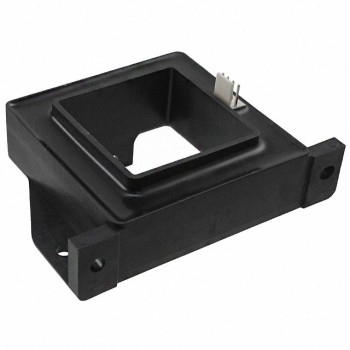

L34S1T0D15

SENSOR CURRENT HALL 1000A AC/DC
HOT CSNE151-100

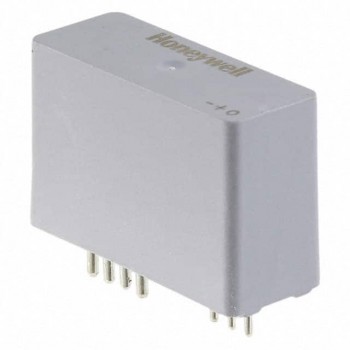

CSNE151-100
