AAT009-10E

AAT009-10E

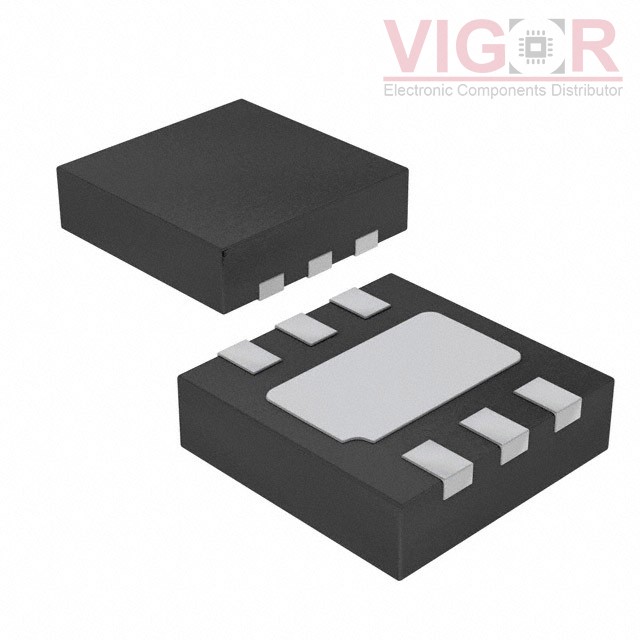

Image is for reference,
please contact us to get the real picture

Part No :

AAT009-10E

Manufacturer
NVE Corporation
Description
SENSOR ANGLE 360DEG SMD
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
May 17 - May 21 2024
DataSheet
AAT009-10E PDF
Availability
1283 pieces
Unit Price
$4.62000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of AAT009-10E is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

AAT009-10E Specifications
Type Description
Series:AAT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:Angle
Technology:Magnetoresistive
Rotation Angle - Electrical, Mechanical:0° ~ 360°, Continuous
Linear Range:-
Output:Resistive
Output Signal:-
Actuator Type:External Magnet, Not Included
Linearity:-
Resistance:10 MOhms
Resistance Tolerance:-
Voltage - Supply:5.5V
Mounting Type:Surface Mount
Termination Style:SMD (SMT) Tab
Operating Temperature:-40°C ~ 125°C
Package / Case:6-WDFN Exposed Pad
Supplier Device Package:6-TDFN (2.5x2.5)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
