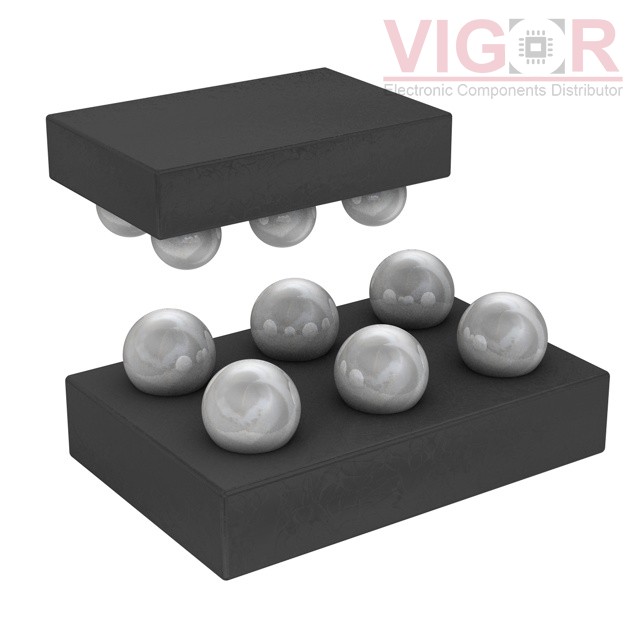

RT9055-NNWSC

RT9055-NNWSC

Image is for reference,
please contact us to get the real picture

Part No :

RT9055-NNWSC

Manufacturer
Richtek
Description
IC REG LINEAR 2.85V/2.85V 6WLCSP
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
RT9055-NNWSC PDF
Availability
2367 pieces
Unit Price
$0.87000

Current price of RT9055-NNWSC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RT9055-NNWSC Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:2
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):2.85V, 2.85V
Voltage - Output (Max):-
Voltage Dropout (Max):0.3V @ 300mA, 0.3V @ 300mA
Current - Output:300mA, 300mA
Current - Quiescent (Iq):58 µA
Current - Supply (Max):-
PSRR:70dB ~ 38dB (100Hz ~ 300kHz)
Control Features:Enable
Protection Features:Over Current, Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:6-UFBGA, WLCSP
Supplier Device Package:6-WLCSP (1.2x0.80)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

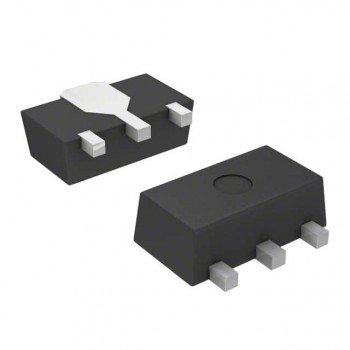

HOT S-817B58AUA-CXVT2U

S-817B58AUA-CXVT2U

IC REG LINEAR 5.8V 75MA SOT89-3

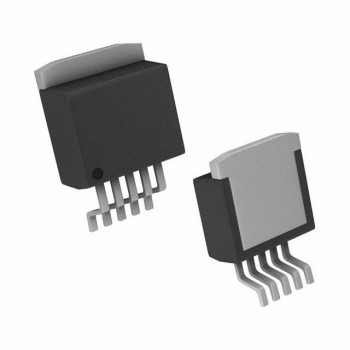

HOT LP3856ESX-ADJ
