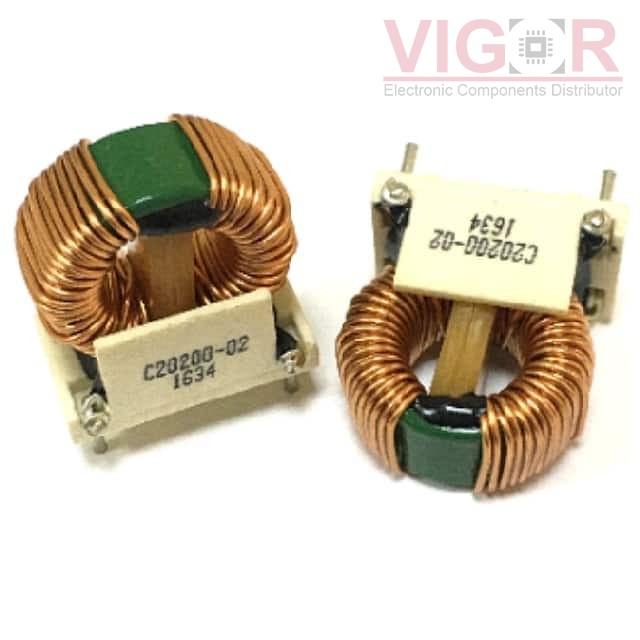

C20200-22

Image is for reference,
please contact us to get the real picture

Part No :: C20200-22

Manufacturer: ITG Electronics, Inc.

Description: CMC 500UH 14A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: C20200-22 PDF

Availability: 0 pieces

Unit Price: ~~$6.56000~~

Current price of C20200-22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C20200-22 Specifications

Type	Description
Series:	C20200
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	500 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	14A
DC Resistance (DCR) (Max):	5mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.500" L x 0.866" W (38.10mm x 22.00mm)
Height (Max):	1.530" (38.86mm)
Package / Case:	Radial, Vertical - 4 Leads

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

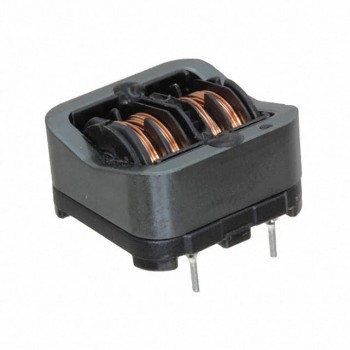

SSR21NHS-031590

CMC 159.0MH 0.3A 2.85OHM WIDE IM

HOT

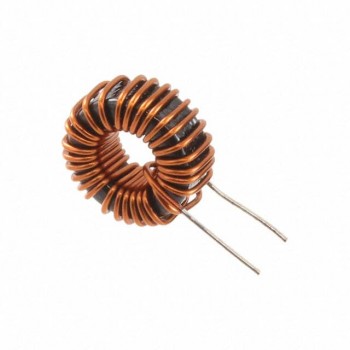

SHBC24N-2R1B0039V

NMC 21.2UH 30A 0.0068OHM TH

HOT

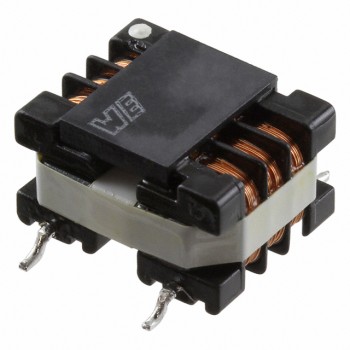

750315743
