SFH615A-4XSMT/R

SFH615A-4XSMT/R

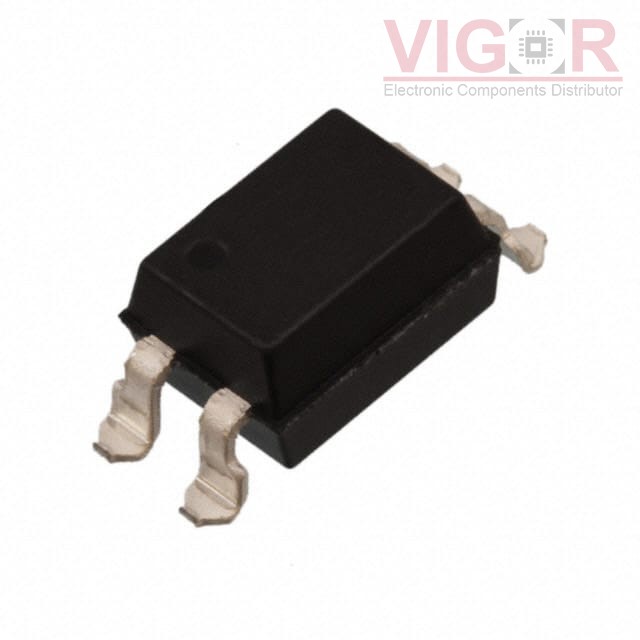

Image is for reference,
please contact us to get the real picture

Part No :

SFH615A-4XSMT/R

Manufacturer
Isocom Components
Description
OPTOISOLATOR 5.3KV TRANS 4SMD
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
SFH615A-4XSMT/R PDF
Availability
724 pieces
Unit Price
$0.52000

Current price of SFH615A-4XSMT/R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SFH615A-4XSMT/R Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Channels:1
Voltage - Isolation:5300Vrms
Current Transfer Ratio (Min):160% @ 10mA
Current Transfer Ratio (Max):320% @ 10mA
Turn On / Turn Off Time (Typ):6µs, 25µs
Rise / Fall Time (Typ):4.6µs, 15µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):70V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.65V (Max)
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):400mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:-
