JANTX4N22A

JANTX4N22A

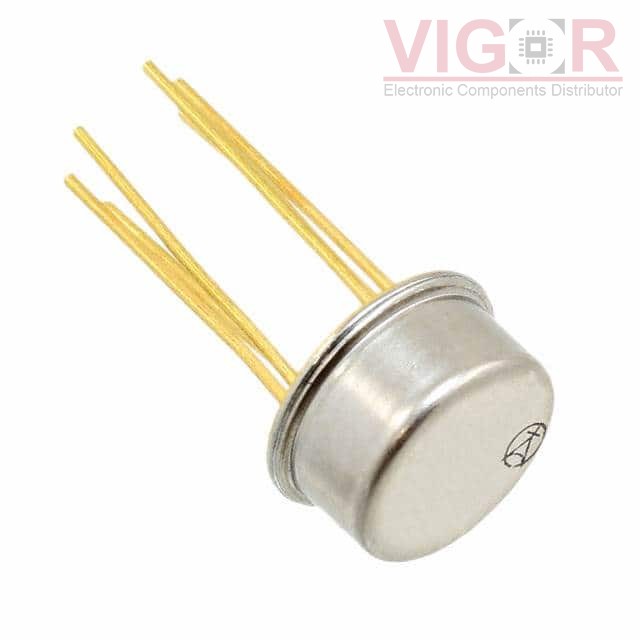

Image is for reference,
please contact us to get the real picture

Part No :

JANTX4N22A

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISO 1KV TRANS W/BASE TO78-6
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
JANTX4N22A PDF
Availability
0 pieces
Unit Price
$24.58500

Current price of JANTX4N22A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JANTX4N22A Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Channels:1
Voltage - Isolation:1000VDC
Current Transfer Ratio (Min):25% @ 10mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):20µs, 20µs (Max)
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):40V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.5V (Max)
Current - DC Forward (If) (Max):40 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-78-6 Metal Can
Supplier Device Package:TO-78-6
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TIL190-2

TIL190-2

DARLINGTON OUTPUT OPTOCOUPLER

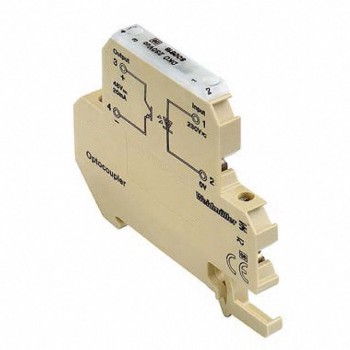

HOT 8025910000
