SM5S22A

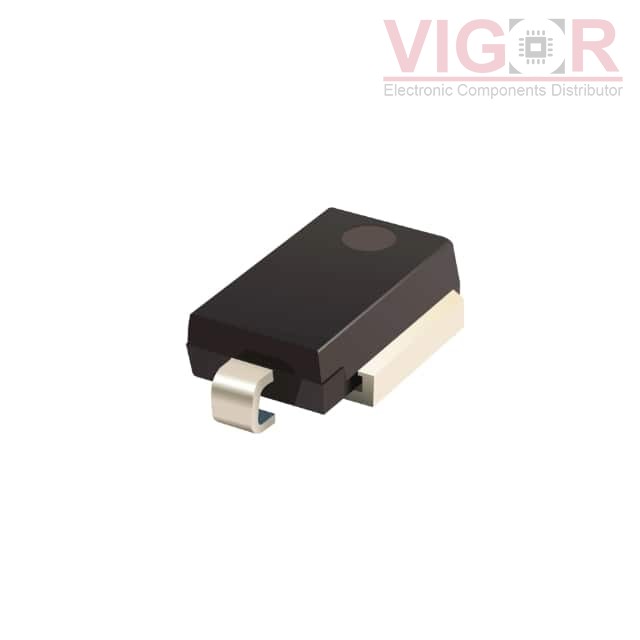

Image is for reference,
please contact us to get the real picture

Part No :: SM5S22A

Manufacturer: Rectron USA

Description: TVS DIODE 5W 22V 35.5V DO-218

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: SM5S22A PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SM5S22A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SM5S22A Specifications

Type	Description
Series:	Automotive, AEC-Q101, SM5S
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	25.65V
Voltage - Breakdown (Min):	-
Voltage - Clamping (Max) @ Ipp:	39.4V
Current - Peak Pulse (10/1000µs):	-
Power - Peak Pulse:	3600W (3.6kW)
Power Line Protection:	-
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-218AB
Supplier Device Package:	DO-218

Please confirm the specifications of the products when ordering.
