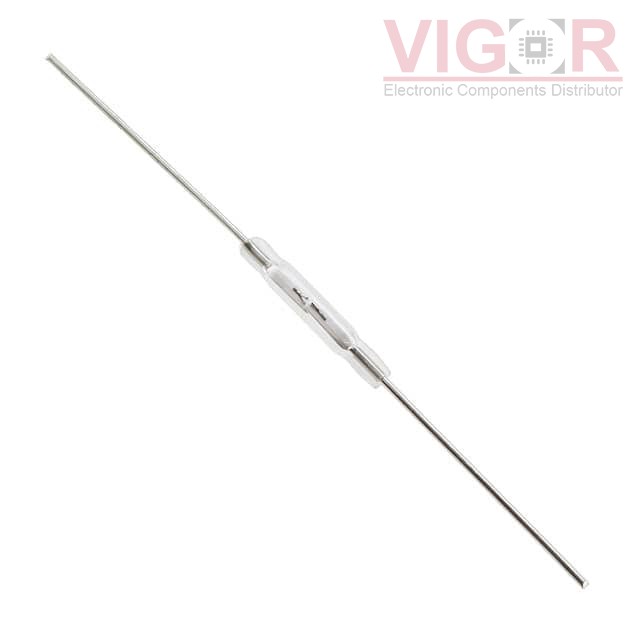

SW GR560/15-20 AT

SW GR560/15-20 AT

Image is for reference,
please contact us to get the real picture

Part No :

SW GR560/15-20 AT

Manufacturer
Standex Electronics
Description
SWITCH REED SPST-NO 1A 125V
Catalog
Magnetic, Reed Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
SW GR560/15-20 AT PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SW GR560/15-20 AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SW GR560/15-20 AT Specifications
Type Description
Series:GR560
Package:Bulk
Part Status:Obsolete
Type:Glass Body
Circuit:SPST-NO
Operate Range:15 ~ 20AT
Release Range:6 ~ 21AT
Current - Switching:1A (AC/DC)
Voltage - Switching AC:125 V
Voltage - Switching DC:100 V
Power - Rated:10VA
Operate Time:0.6 ms
Release Time:0.1 ms
Mounting Type:Through Hole
Termination Style:Axial
Length - Overall:2.126" (54.00mm)
Size - Body:0.091" Dia x 0.559" L (2.30mm x 14.20mm)
Height Above Board:-
Operating Temperature:-40°C ~ 125°C
Capacitance:0.2 pF
Current - Carry:1.5A (AC/DC)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

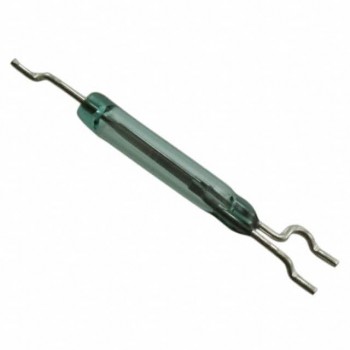

HOT MDSM-DTR-15-25

MDSM-DTR-15-25

SWITCH REED SPDT 180MA 120V

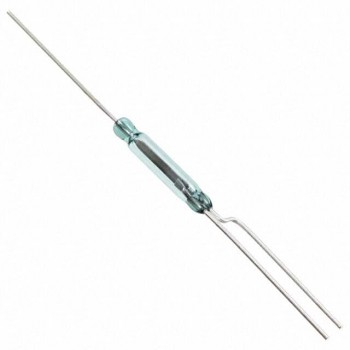

HOT MDRR-DT-25-40-F

MDRR-DT-25-40-F

SWITCH REED SPDT 180MA 120V

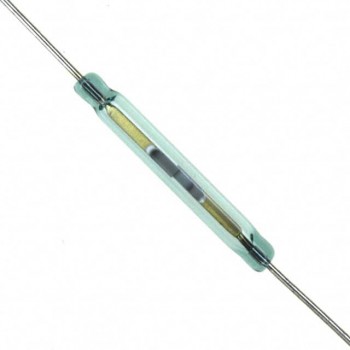

HOT MARR-5-27-38
