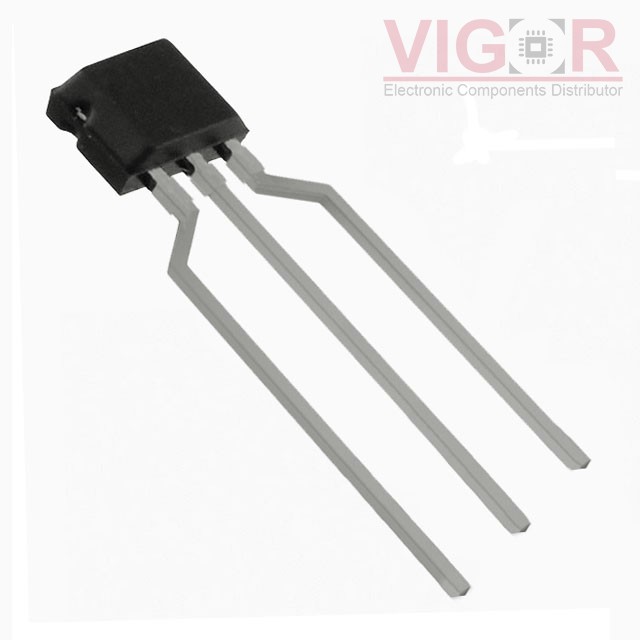

HAL509UA-A

HAL509UA-A

Image is for reference,
please contact us to get the real picture

Part No :

HAL509UA-A

Manufacturer
TDK Micronas
Description
MAGNETIC SWITCH UNIPOL TO92UA-1
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
HAL509UA-A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HAL509UA-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HAL509UA-A Specifications
Type Description
Series:HAL® 5xy
Package:Tape & Box (TB)
Part Status:Obsolete
Function:Unipolar Switch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:30.4mT Trip, 19.9mT Release
Test Condition:25°C
Voltage - Supply:3.8V ~ 24V
Current - Supply (Max):4.2mA
Current - Output (Max):20mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 170°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-92UA-1
Package / Case:TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

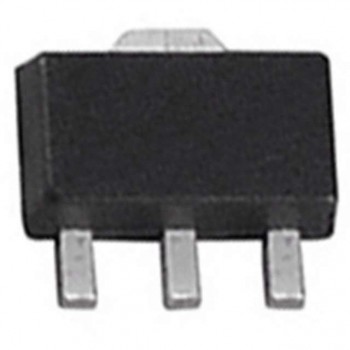

HOT TLE4905GNTSA1

TLE4905GNTSA1

MAGNETIC SWITCH UNIPOLAR SOT89-3

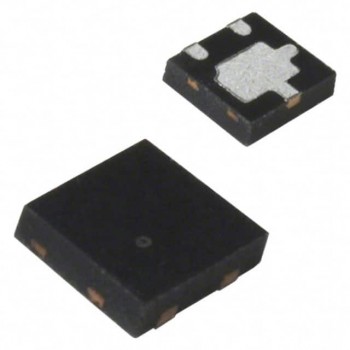

HOT A3212EELLT-T
