PQ120DNA1ZPH

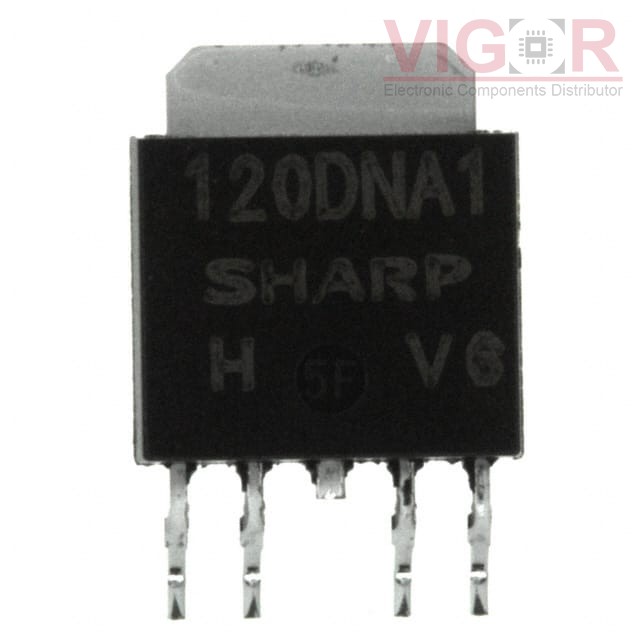

Image is for reference,
please contact us to get the real picture

Part No :: PQ120DNA1ZPH

Manufacturer: Sharp Microelectronics

Description: IC REG LINEAR 12V 1A SC63

Catalog: PMIC - Voltage Regulators - Linear

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: PQ120DNA1ZPH PDF

Availability: 1850 pieces

Unit Price: ~~$0.00000~~

Current price of PQ120DNA1ZPH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PQ120DNA1ZPH Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	24V
Voltage - Output (Min/Fixed):	12V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.5V @ 500mA
Current - Output:	1A
Current - Quiescent (Iq):	8 mA
Current - Supply (Max):	-
PSRR:	60dB (120Hz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package:	SC-63

Please confirm the specifications of the products when ordering.
