PQ15RW11J00H

PQ15RW11J00H

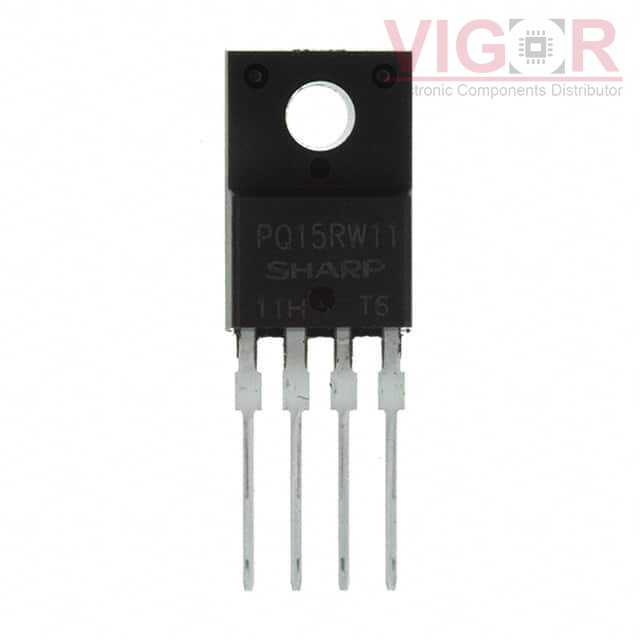

Image is for reference,
please contact us to get the real picture

Part No :

PQ15RW11J00H

Manufacturer
Sharp Microelectronics
Description
IC REG LINEAR POS ADJ 1A TO220-4
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
PQ15RW11J00H PDF
Availability
1219 pieces
Unit Price
$0.00000

Current price of PQ15RW11J00H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PQ15RW11J00H Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):20V
Voltage - Output (Min/Fixed):3V
Voltage - Output (Max):15V
Voltage Dropout (Max):0.5A @ 500mA
Current - Output:1A
Current - Quiescent (Iq):8 mA
Current - Supply (Max):-
PSRR:55dB (120Hz)
Control Features:-
Protection Features:Over Current, Over Temperature
Operating Temperature:-20°C ~ 80°C
Mounting Type:Through Hole
Package / Case:TO-220-4
Supplier Device Package:TO-220-4
