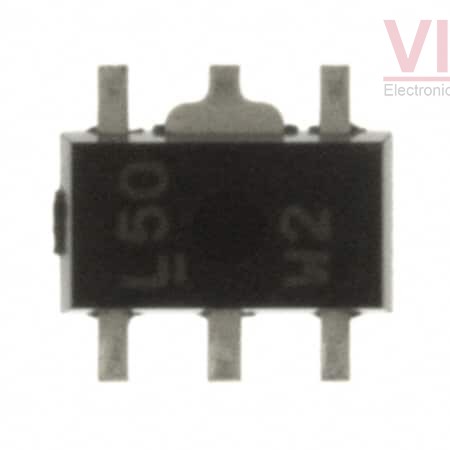

PQ1L503M2SPQ

PQ1L503M2SPQ

Image is for reference,
please contact us to get the real picture

Part No :

PQ1L503M2SPQ

Manufacturer
Sharp Microelectronics
Description
IC REG LINEAR 5V 300MA SOT89
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
PQ1L503M2SPQ PDF
Availability
2500 pieces
Unit Price
$0.00000

Current price of PQ1L503M2SPQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PQ1L503M2SPQ Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):16V
Voltage - Output (Min/Fixed):5V
Voltage - Output (Max):-
Voltage Dropout (Max):0.7V @ 300mA
Current - Output:300mA
Current - Quiescent (Iq):500 µA
Current - Supply (Max):-
PSRR:-
Control Features:Enable
Protection Features:Over Current, Over Temperature
Operating Temperature:-30°C ~ 80°C
Mounting Type:Surface Mount
Package / Case:SOT-89-5/6
Supplier Device Package:SOT-89
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LP2985IM5X-135

LP2985IM5X-135

IC REG LIN 1.35V 150MA SOT23-5

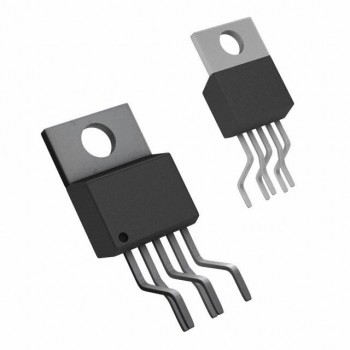

HOT LP3883ET-1.5/NOPB

LP3883ET-1.5/NOPB

IC REG LINEAR 1.5V 3A TO220-5

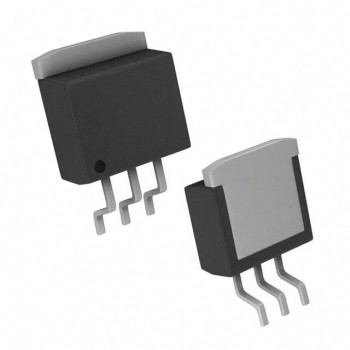

HOT LX8587-33CDD
