STR-W6253MD

STR-W6253MD

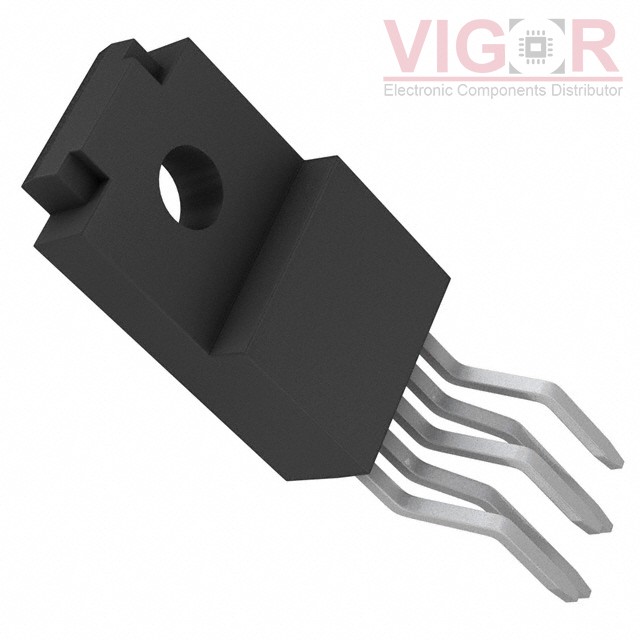

Image is for reference,
please contact us to get the real picture

Part No :

STR-W6253MD

Manufacturer
Sanken Electric Co., Ltd.
Description
IC PWM CTLR AC/DC TO-220F-6
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
STR-W6253MD PDF
Availability
4404 pieces
Unit Price
$0.00000

Current price of STR-W6253MD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STR-W6253MD Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:650V
Topology:Flyback
Voltage - Start Up:15.5 V
Voltage - Supply (Vcc/Vdd):8V ~ 27V
Duty Cycle:75%
Frequency - Switching:67kHz
Power (Watts):-
Fault Protection:Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features:-
Operating Temperature:-20°C ~ 150°C (TJ)
Package / Case:TO-220-5 Formed Leads
Supplier Device Package:TO-220-5
Mounting Type:Through Hole
