PC512

PC512

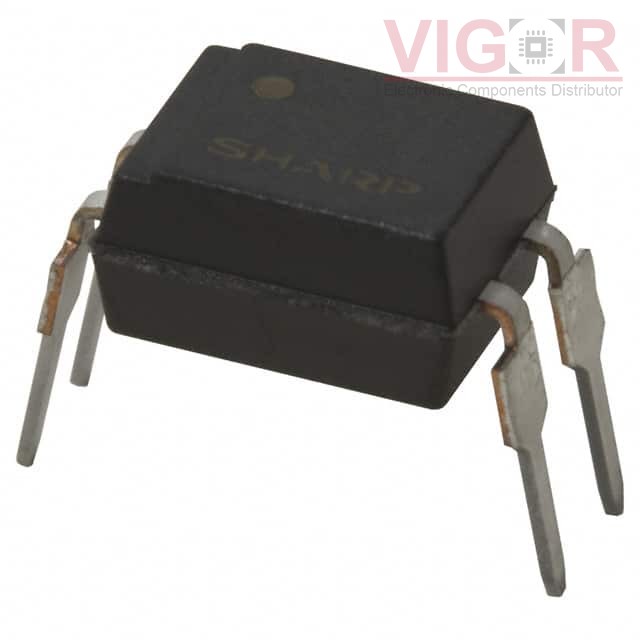

Image is for reference,
please contact us to get the real picture

Part No :

PC512

Manufacturer
Sharp Microelectronics
Description
OPTOISOLATOR 5KV TRANS MODULE
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
PC512 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PC512 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC512 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):-
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):3µs, 4µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):35V
Current - Output / Channel:20mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):400mV
Operating Temperature:-25°C ~ 85°C
Mounting Type:Through Hole
Package / Case:4-DIP Module
Supplier Device Package:4-DIP
