PC713V0NSZX

PC713V0NSZX

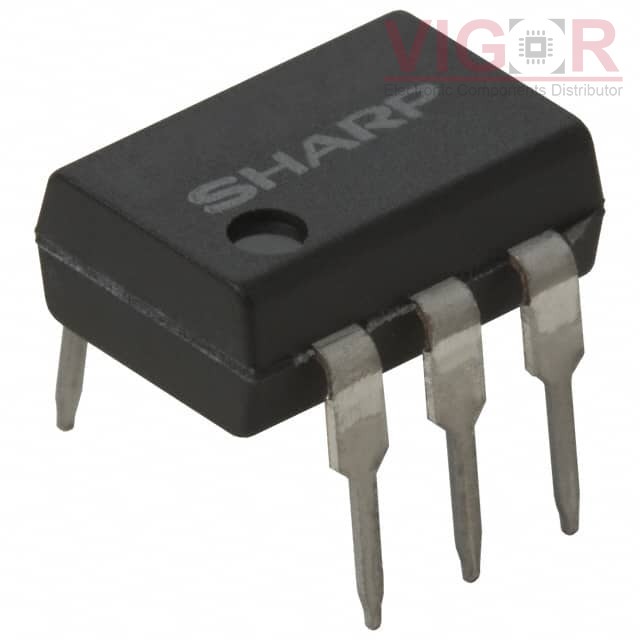

Image is for reference,
please contact us to get the real picture

Part No :

PC713V0NSZX

Manufacturer
Sharp Microelectronics
Description
OPTOISO 5KV TRANS W/BASE 6DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
PC713V0NSZX PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PC713V0NSZX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC713V0NSZX Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):600% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):4µs, 3µs
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-25°C ~ 100°C
Mounting Type:Through Hole
Package / Case:6-DIP (0.300", 7.62mm)
Supplier Device Package:6-DIP
