PC81100NSZ

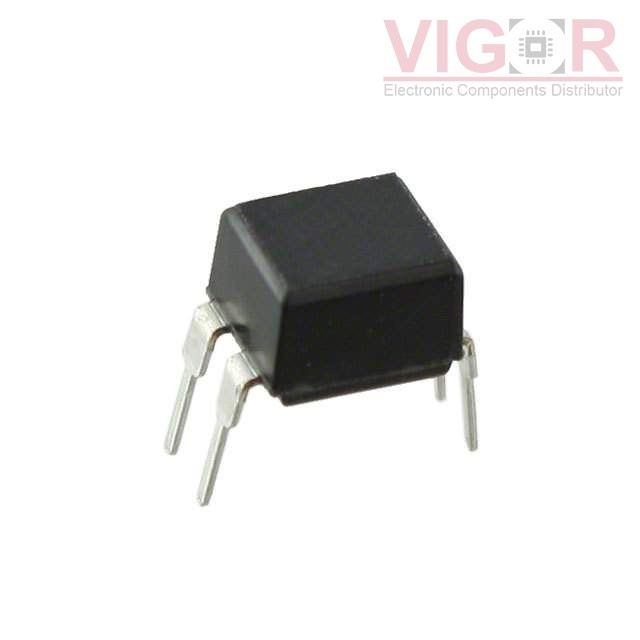

Image is for reference,
please contact us to get the real picture

Part No :: PC81100NSZ

Manufacturer: Sharp Microelectronics

Description: OPTOISOLATOR 5KV TRANS 4DIP

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 19 - Jul 23 2025

DataSheet: PC81100NSZ PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PC81100NSZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC81100NSZ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	50% @ 5mA
Current Transfer Ratio (Max):	400% @ 5mA
Turn On / Turn Off Time (Typ):	2µs, 23µs
Rise / Fall Time (Typ):	3µs, 2µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	30mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	350mV
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	4-DIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP
